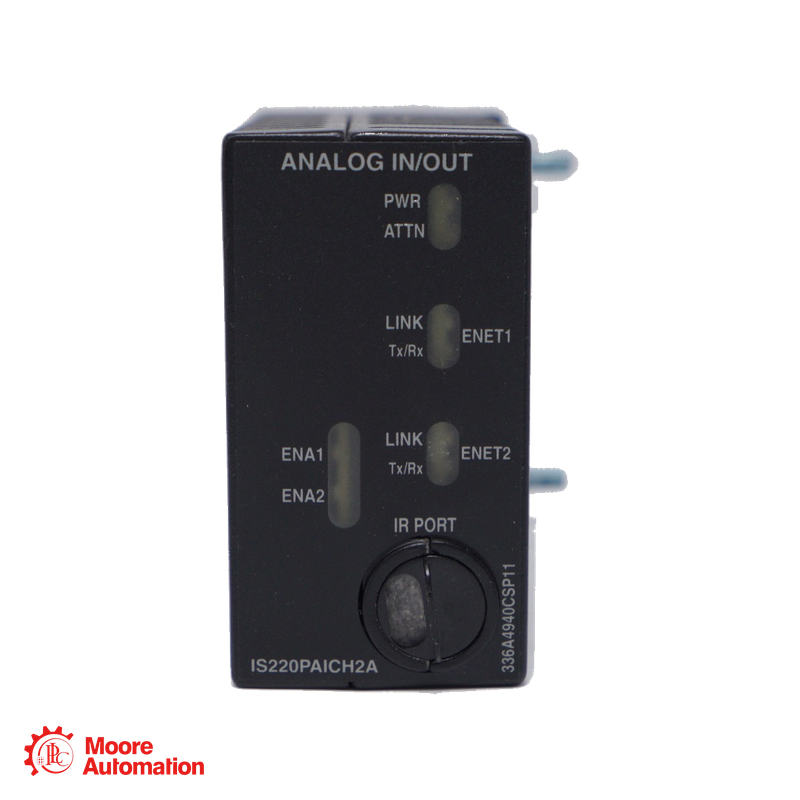

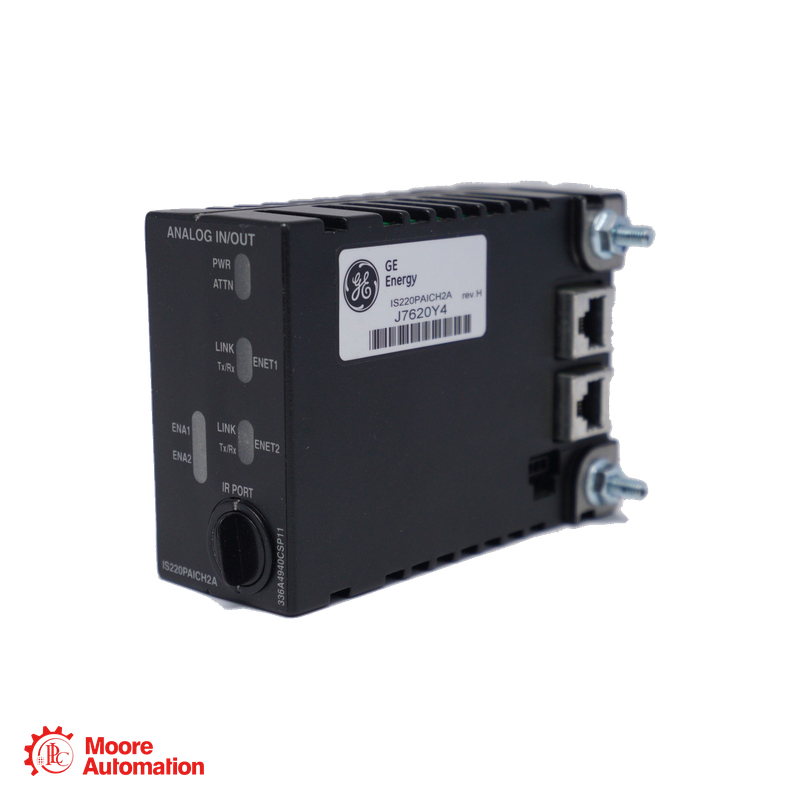

GE IS220PAICH2B Mark VIe Analog I/O Pack
GE IS220PAICH2B Mark VIe Analog I/O Pack
GE IS220PAICH2B Mark VIe Analog I/O Pack

GE IS220PAICH2B Mark VIe Analog I/O Pack

GE MARK VIE · ANALOG I/O WITH 200 MA OUTPUT

IS220PAICH2B

IS220PAICH2B is a BPPC-based Mark VIe analog I/O pack with ten analog inputs and two current outputs. The H2 hardware adds a 0–200 mA range on output 1.

PRODUCT TYPEANALOG I/O
PLATFORMMark VIe
INPUTS10 channels
OUTPUTS2 channels
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
hỏi ngay
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● ANALOG I/O WITH 200 MA OUTPUT
MARK VIE

IS220PAICH2B

ANALOG I/O

MARK VIE · PAIC H2B · ANALOG INPUT / OUTPUT

MODULE ROLE
IS220PAICH2B interfaces analog field signals and current-loop outputs with the Mark VIe I/O Ethernet network.
LONG DESCRIPTION

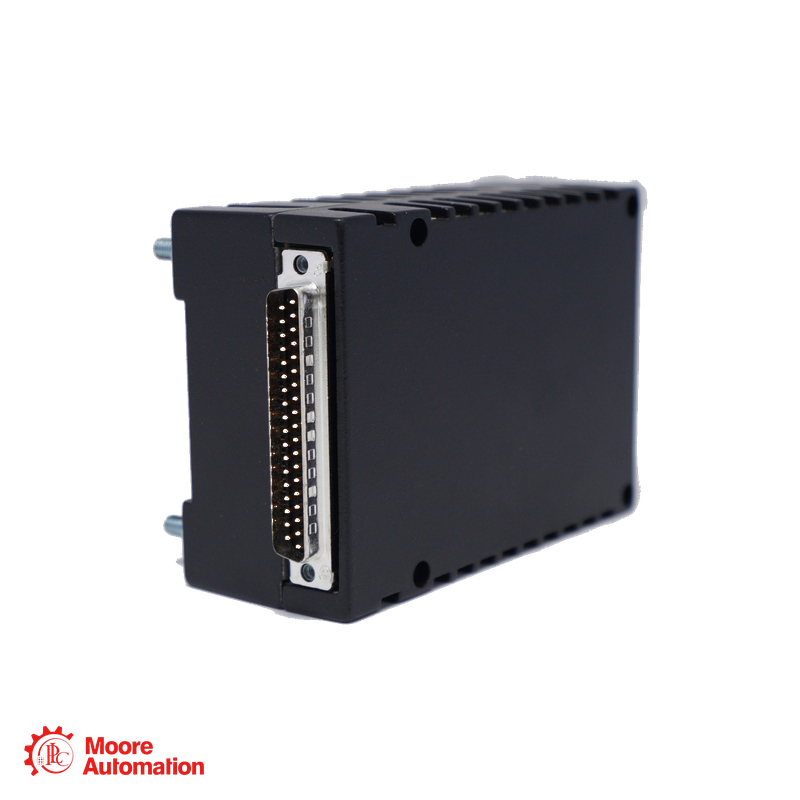

IS220PAICH2B accepts configurable voltage or current inputs on channels 1–8 and current inputs on channels 9–10. Both outputs support 0–20 mA; the H2 version also supports 0–200 mA on the first output. A DC-37 connector joins the pack to its terminal board, while two RJ-45 ports provide I/O networking.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS220PAICH2B Reference Is Structured

IS
Issuing organizationGE Power, Salem, Virginia
2
Substance designationLegacy non-RoHS designation
20
Assembly levelOne or more PCBAs in an enclosure
PAIC
Functional mnemonicAnalog input/output
H
Technology codeIncludes surface-mount components
2
Assembly variantPAIC H2 hardware variant
B
Compatibility versionBackward-compatibility version B
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS220PAICH2B ANALOG I/O

Engineering data at a glance

Click “+” to expand more specifications.

ANALOG IN10
ANALOG OUT2
H2 OUTPUT 10–200 mA
INPUT ADC16-bit
PAICH2B provides ten analog inputs and two outputs; the first output includes the H2-specific 200 mA range.
Module configuration The complete reference IS220PAICH2B identifies the PAIC H2 analog I/O hardware with the BPPC processor generation. Only output 1 has the additional 0–200 mA capability.
GENERAL INFORMATION −
BrandGE
Part numberIS220PAICH2B
Product typeAnalog I/O Pack
Analog inputs10 channels
Analog outputsTwo 0–20 mA channels
H2 additional output rangeOutput 1: 0–200 mA
INPUT & OUTPUT SIGNALS ＋
Inputs 1–8±5 V, ±10 V or 4–20 mA
Inputs 9–10±1 mA or 4–20 mA
Maximum output load800 Ω at 0–20 mA; 50 Ω at 0–200 mA
CONVERSION & NETWORK ＋
Input converter16-bit A/D
Output converter14-bit D/A
I/O networkingDual RJ-45 Ethernet connectors
Terminal interfaceDC-37 pin connector
Processor generationBPPC
CONFIGURATION ＋
Hardware operation: Simplex or TMR operation uses the corresponding compatible terminal board. Configure ranges and H2 output mode in ToolboxST with the matching PAIC firmware.
Source: GEH-6721_Vol_II_BP, section 3.1, Mark VIe PAIC Analog I/O Pack, pages 193–201.
FAQ

Questions Buyers Ask Most

What distinguishes IS220PAICH2B from PAICH1B?＋

IS220PAICH2B adds hardware for 0–200 mA operation on output 1. Both PAIC hardware forms provide ten inputs and two current outputs.

Which signals can IS220PAICH2B measure?＋

IS220PAICH2B accepts ±5 V, ±10 V or 4–20 mA on inputs 1–8. Inputs 9–10 accept ±1 mA or 4–20 mA.

Can both outputs on IS220PAICH2B supply 200 mA?＋

IS220PAICH2B supports the 0–200 mA range on output 1 only. The normal two-output range is 0–20 mA.

What load limits apply to IS220PAICH2B?＋

IS220PAICH2B is specified for a maximum 800 Ω load on the 0–20 mA range and 50 Ω on the 0–200 mA range.

Which processor generation does IS220PAICH2B use?＋

IS220PAICH2B is the BPPC-based H2B pack. Select the firmware and ControlST configuration applicable to that hardware form.

Other Available Revisions for the IS220PAICH2B＋

No other full revision was confirmed as an interchangeable replacement for IS220PAICH2B. Ask Frida to check the installed hardware and application before selecting another revision.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS220PAICH2B

Official manufacturer-manual PDF status for GE IS220PAICH2B.

Official datasheet status

A direct GE-hosted instruction-manual PDF covering IS220PAICH2B was not confirmed in the public manufacturer library. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEH-6721_Vol_II_BP, section 3.1, Mark VIe PAIC Analog I/O Pack, pages 193–201.

GE MARK VIE SYSTEM RELATIONSHIP

How IS220PAICH2B Fits Mark VIe Control

GE is the manufacturer brand; GE Mark VIe is the product family; and IS220PAICH2B is the analog i/o pack used for analog input and current-output control.

GE · BRAND
GE Mark VIeAnalog I/O Pack
SYSTEM ROLE

Analog I/O Pack

Acquires analog field signals and generates current outputs.

MODULE / CONFIGURATION

10 AI · 2 AO · H2 range

The H2 acquisition hardware adds 0–200 mA on output 1.

I/O ROLE

IS220PAICH2B · Analog I/O Pack

Dual I/O Ethernet ports exchange process data with the Mark VIe controller.

System relationship: The PAIC acquisition hardware works with the selected terminal board, which provides field termination and current-input burden resistors.
APPLICATION AREAS

Application map for IS220PAICH2B

Analog MeasurementAcquire configured voltage and current process signals
Current OutputsGenerate two current-loop control outputs
MARK VIE ANALOG I/O IS220PAICH2B IS220PAICH2B · Analog I/O Pack
200 mA ControlUse the H2-specific output 1 range for an applicable configured load
Redundant I/OUse a compatible TMR terminal board when the application requires three packs
