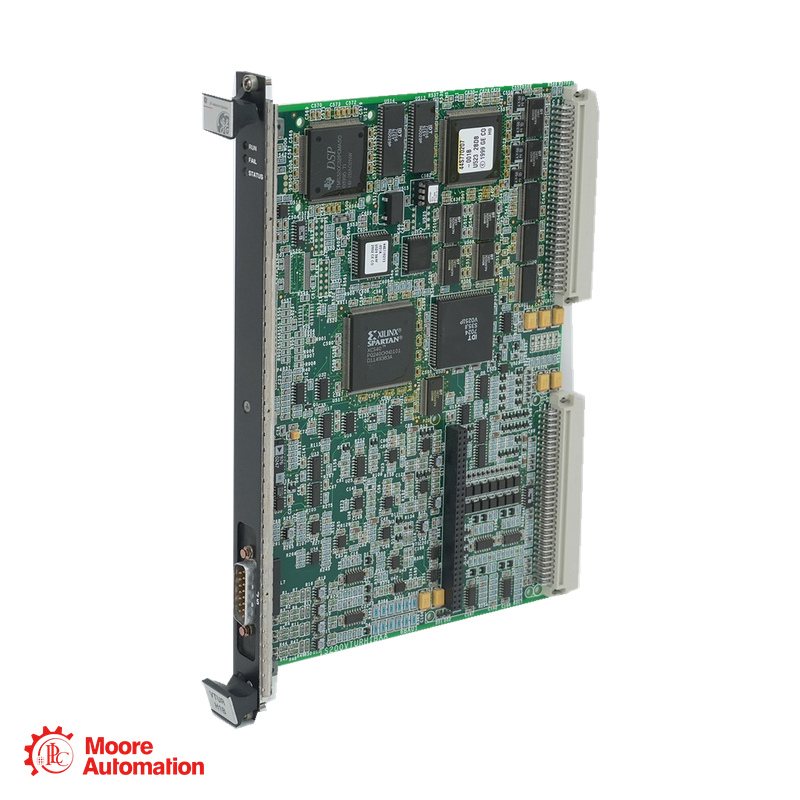

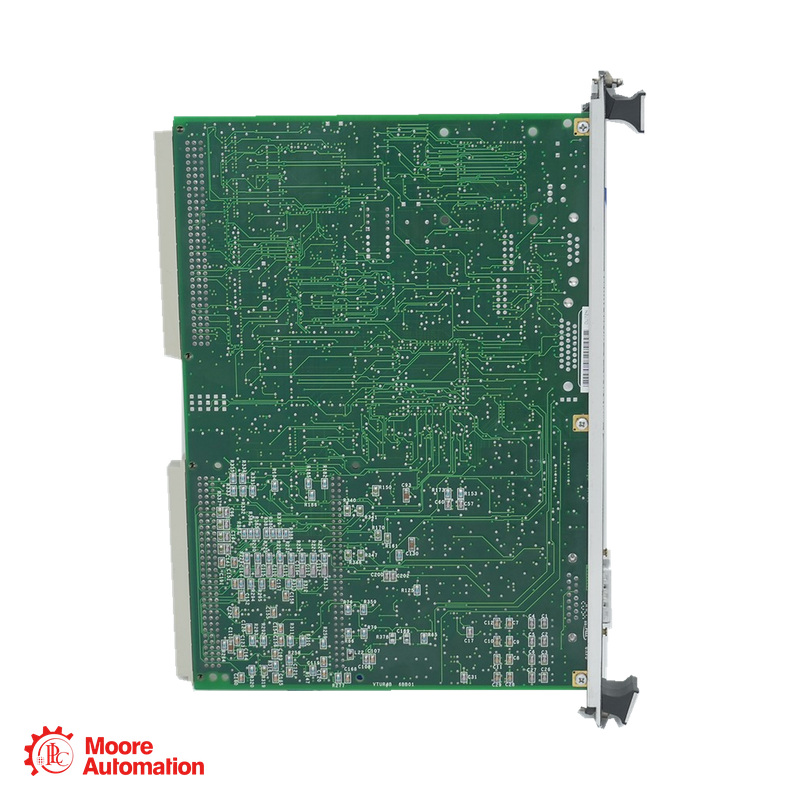

GE IS200PAOCH1B Mark VIe Analog Output Board

Identify IS200PAOCH1B by the complete GE part number, visible hardware revision, board label, installed output position and the Mark VIe project documentation. A similar PAOC designation is not proof of interchangeability.

Match IS200PAOCH1B to the documented analog-output arrangement and the supported TBAO or STAO terminal-board path specified for the project. Verify connectors, cabling, field-output circuits and the complete installed architecture before ordering.

IS200PAOCH1B provides the analog output interface between the Mark VIe control architecture and the installed field-output terminal hardware. The exact output assignments and signal ranges follow the project configuration.

Follow the site safety and ESD procedures, then verify the correct I/O position, connector keying, terminal-board match, output wiring and hardware revision. During commissioning, use approved Mark VIe procedures to confirm device recognition and the expected response of each assigned analog output.

Evaluate IS200PAOCH1B within the complete Mark VIe output path. Confirm output scaling, commanded range, terminal-board compatibility and controller/network mapping from the project records; family similarity alone does not establish migration compatibility.

Use the complete IS200PAOCH1B order number as the baseline. Other PAOC group or revision codes may represent different hardware changes, so confirm the equipment bill of material, board label, installed position, terminal-board arrangement and GE project documentation before ordering an alternative.
