GE IC695CPK330-ACAS RX3i Processor Module

Contact Information

IC695CPK330-ACAS Specifications

IC695CPK330-ACAS Description

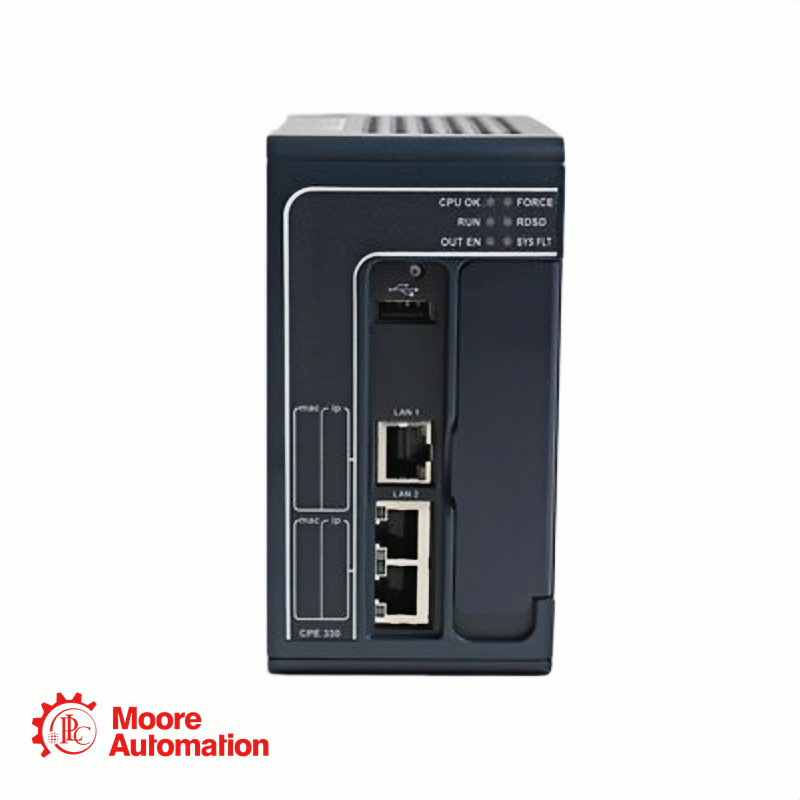

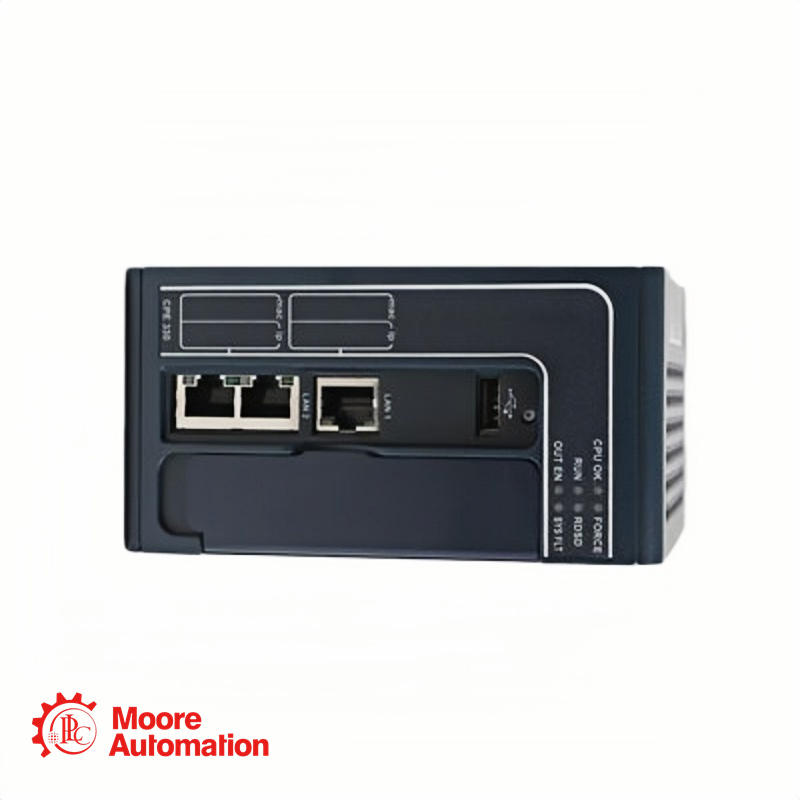

The IC695CPK330-ACAS is a PAC processor that is part of the PACSystem RX3i Programmable Controller (PAC) product family. This controller is manufactured by GE Fanuc that boasts of a modern, highly scalable, and high-performance design as it is capable of high-speed I/O communication and Highway Addressable Remote Transducer (HART) pass thru.

This processor comes with 64 MB Random Access Memory (RAM) and 64 MB non-volatile memory, a microprocessor with 1 GHz clock speed and battery pack capability. It is also equipped with Three (3) Ethernet ports in total, with One (1) Ethernet port supporting 10/100/1000 Mbps transmission rate and Two (2) Ethernet ports functioning as an embedded switch that supports 10/100/1000 Mbps transmission rate as well. Supported Ethernet topologies are liner, ring and star topologies. This processor has Energy pack capability which allows data to be written to the processor’s non-volatile memory during power failure. This prevent unwanted erasure of the user program and provides additional ON time for the processor to carry out the data transfer process. Additionally, this processor supports a variety of communication protocols such as SRTP Client/Server, Modbus TCP/IP, OPC-UA Server, EGD and PROFINET.

Additionally, this processor is equipped with a USB 2.0 interface which allows downloading of user program from a removable storage or smart phone. This processor is designed to be Twice faster than the IC695CPK330-ACAS and supports redundant or Hot-standby configuration. This processor is programmed and commissioned using the GE Proficy Machine Edition software or Logic Developer programming software.

The IC695CPK330-ACAS CPU supports a 10/100/1000 Mbaud Ethernet port with an RJ-45 physical interface. A 2-port 10/100/1000 switch is also built into the CPU module. The maximum number of local racks supported by the IC695CPK330-ACAS CPU is 8. Communication options include the DNP3 outstation, HART SNP, SRTP, IEC104, IEC61850 client, and the OPC-UA EGD protocols. I/O protocols including the Modbus TRU, Profibus, Modbus TCP, DeviceNet, Genius, EGD, and Reflective Memory protocols are also supported. Programming software including the Machine Edition Developer 8.6 SIM8 or later software can be used for module programming and configuration. The IC695CPK330-ACAS CPU supports multiple programming languages including the ladder, structured text, and function block diagram programming languages. The power requirement of the IC695CPK330-ACAS CPU is 3.3 Amps at 5 Volts DC. The IC695CPK330-ACAS CPU occupies 2 slots on the system backplane.

IC695CPK330-ACAS Alternative names

IC695CPK330-ACAS FAQ

What is the IC695CPK330-ACAS?

The IC695CPK330-ACAS is a high-performance PAC processor within the GE Fanuc PACSystem RX3i product family. It is designed for applications requiring high-speed I/O communication and features advanced capabilities like HART pass-through.

How fast is this processor compared to previous models?

The IC695CPK330-ACAS is designed to be twice as fast as the earlier IC695CPK330 model.

Does this processor support redundant or Hot-Standby configurations?

Yes, the IC695CPK330-ACAS is specifically designed to support redundant or Hot-Standby configurations for applications requiring high availability and fault tolerance.

What are the Ethernet capabilities of this processor?

The processor features three (3) Ethernet ports in total:
One (1) dedicated Ethernet port supporting 10/100/1000 Mbps transmission rate.
Two (2) Ethernet ports functioning as an embedded switch, also supporting 10/100/1000 Mbps.
Supported Ethernet topologies include linear, ring, and star topologies.

How can I download a user program to the processor?

The processor is equipped with a USB 2.0 interface which allows downloading of the user program from a removable storage device (such as a USB drive) or even from a smart phone.
