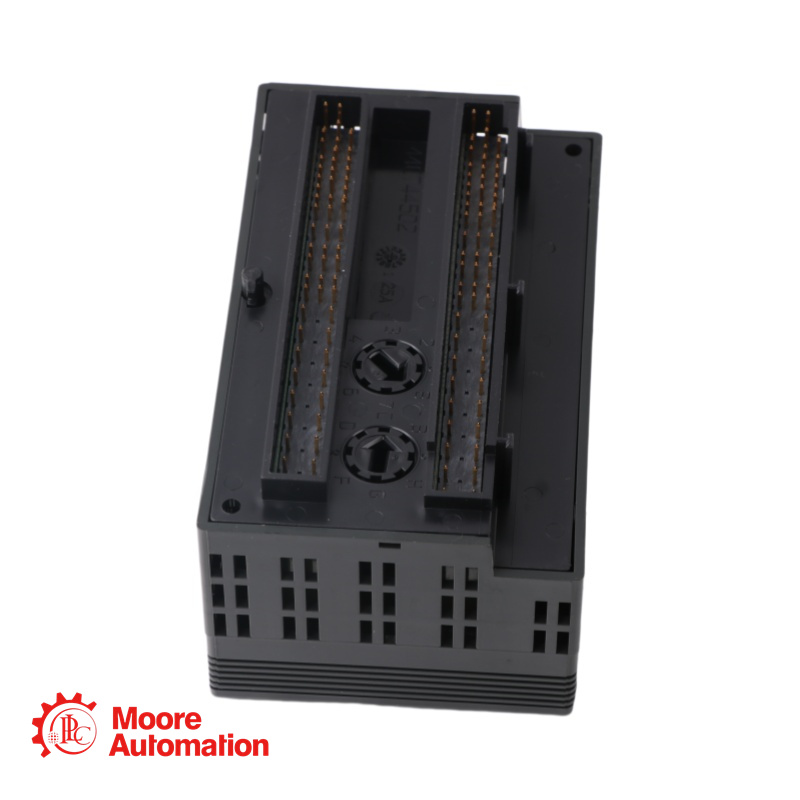

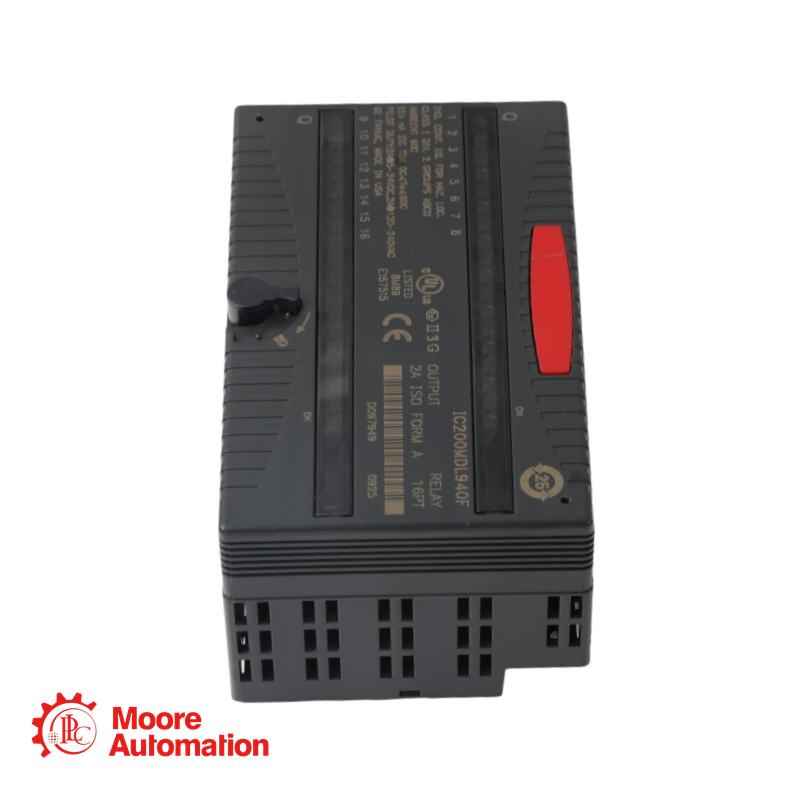

GE IC200MDL940F Relay Output Module

Contact and Submit your Inquiry

Sales Manager - Frida

Phone/Whatsapp:
+86 15359408275

Email:
sales5@mooreplc.com

Address:
Xiamen,Fujian,China

General Information

Product ID:
IC200MDL940F
Long Description:
The IC200MDL940F is a relay output module that is part of the VersaMax I/O platform, formerly by GE Fanuc. This module comes with Sixteen (16) individually isolated Normally Open (N.O.) of Form A relay output contacts rated 0 to 125VDC, 5/24/125VDC nominal output voltage and 0 to 265VAC (47 to 63Hz), 120/240VAC nominal output voltage with output contact rating of 2.0 Amperes. With the built-in channel to channel isolation, each contact outputs can be wired to different voltage sources to energize the corresponding electrical devices wired to an output channel.

Additional Information

Medium Description:
The IC200MDL940F is a relay output module that is part of the VersaMax I/O platform, formerly by GE Fanuc.
Product Type:
Input Module
HS Code:8537101190

Technical

Weight:1.13 lbs (0.51 kg)
Voltage :24 V DC/ 120-240 Volts AC
Product Description:Relay Output Module
Current:2 Amperes
No. of channels:Sixteen (16)
Points:16
Output contact form:Normally Open (Form A)
Temperature:0-60 degrees Celsius
Switching frequency:20 cycles per minute
Input to Logic Isolation:250 Volts AC
Relay Type:Fixed coil, moving armature
Input to Frame Isolation:1500 Volts AC for 60 sec.
Contact Type:Silver alloy
Output Voltage Drop:0.3 Volts maximum
Output signal, nominal:5/24/125VDC; 120/240VAC
Load Current:10 milliamperes
Output signal, range:0 to 125VDC; 0 to 265VAC (47 to 63Hz)
Current Draw:490 mA, maximum
Output response time:10 ms, maximum

FAQ

※What is the contact form available to the IC200MDL940F?
The IC200MDL940F has Form A or Normally Open (N.O.) contacts.
※What is the current rating of the module's output contacts?
Each contact output has maximum current rating of 2.0 Amperes.
※What is the channel response time of the IC200MDL940F?
The IC200MDL940F has maximum channel response time of 10 ms.
