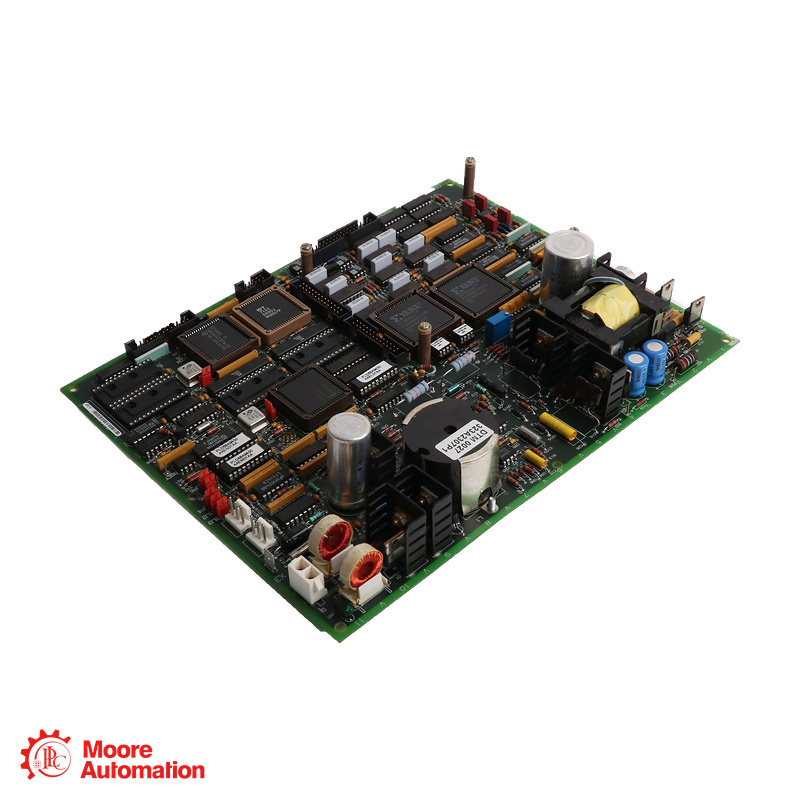

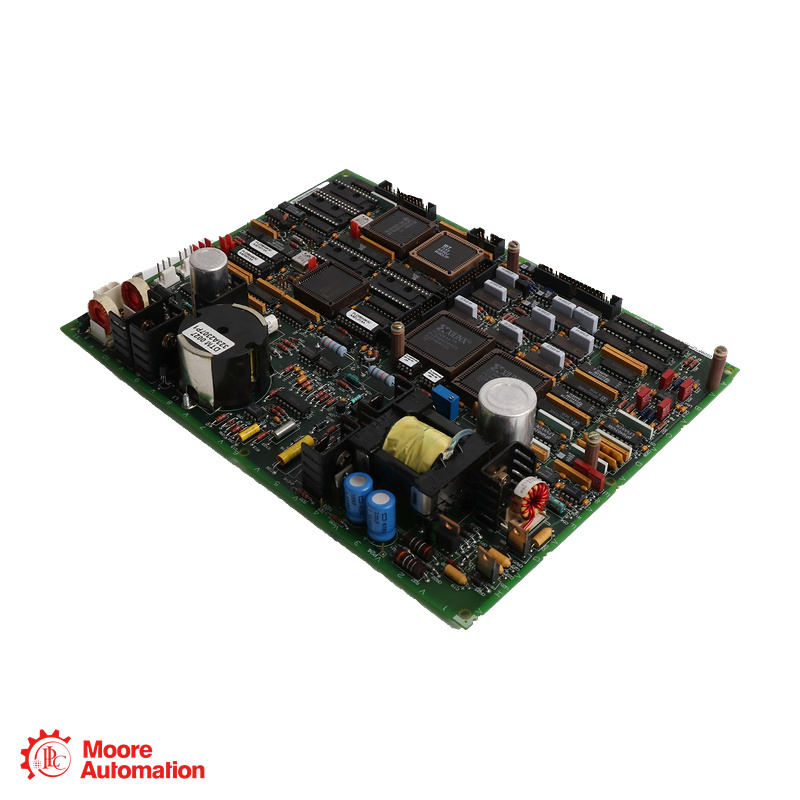

GE DS200TCPAG1A Mark V Turbine Control Processor Board

DS200TCPAG1A is associated with the TCPA configuration target for the Mark V protective-load-unbalance application. The manufacturer documentation describes the PLU function as responding to a configured mechanical/electrical power imbalance.

DS200TCPAG1A uses the TCPA card-definition screens in the I/O Configurator. The documented selections include PLU enable, response-delay options and the applicable configured imbalance thresholds.

DS200TCPAG1A has documented TCPA configuration screens for milliamp inputs, proximity vibration and position inputs, and generator information. The active measurements and assignments depend on the installed application configuration.

DS200TCPAG1A uses the TCPA card-definition sequence that includes early-valve-actuation configuration. The installed Mark V application defines the selected valve response together with the protective-load-unbalance settings.

DS200TCPAG1A has TCPA configuration screens for vibration, position and keyphasor inputs. These definitions assign the connected proximity-transducer signals to their measurement functions within the installed PLU application.

DS200TCPAG1A has a TCPA 196/320 ePROM revision-information display in the manufacturer application manual. The separate revision fields identify the installed firmware used by the TCPA application.
