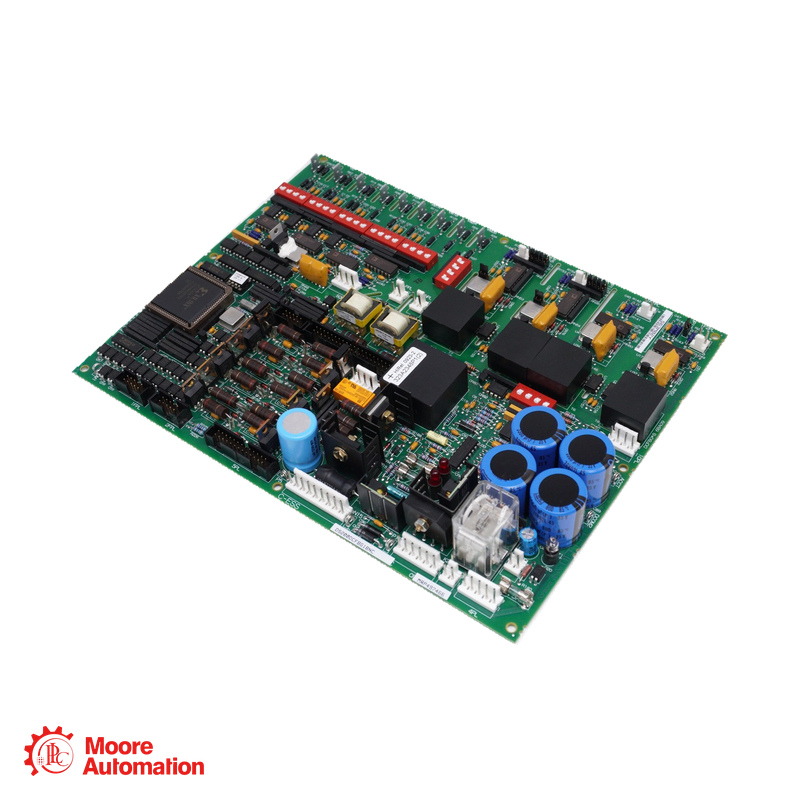

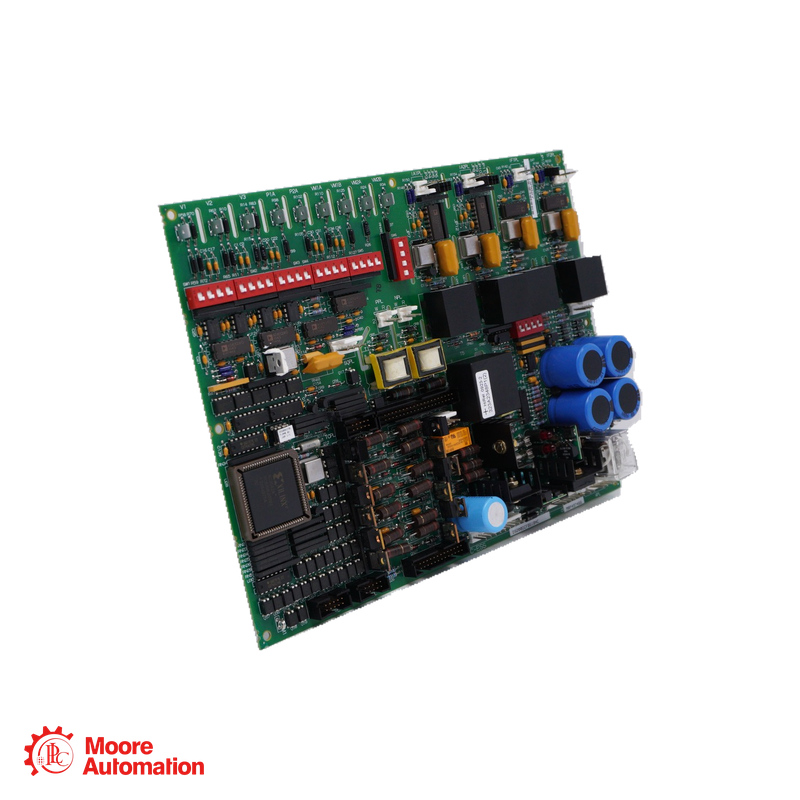

GE DS200DCFBG2B DC Power Supply and Feedback Board

Contact Below to Get Best Price

Product Overview

The GE DS200DCFBG2B is a DC power supply and feedback board for industrial drive and excitation control systems. It combines control-power distribution with circuits that process AC-line, DC-bus, motor-voltage, and current-feedback signals. This gives the controller the power and operating feedback needed to manage drive functions.

Technical Specifications

Features

• Integrated control-power and feedback circuitry
• AC-line, DC-voltage and current-feedback signal handling
• Configurable DIP switches and jumpers
• On-board fuse-status indicators and test points
• Multiple plug and stab connections for drive-control signals

Industries Served
-Industrial Manufacturing: Supports GE drive systems used to control motors across production equipment.
-Metals Processing: Provides power and feedback functions in drive-controlled rolling and processing operations.
-Power Generation: Relevant to GE excitation-control applications that use the DCFB board family.

Frequently Asked Questions

1. What does the DS200DCFBG2B do?
It provides control power and processes feedback signals used by a GE industrial drive or excitation controller.
2. Which signals does the DCFB board handle?
The documented DCFB architecture monitors signals including AC-line voltage, DC-bridge voltage, motor voltage and current feedback.
3. Is DS200DCFBG2B solely a turbine-control board?
No. GE’s DCFB documentation describes applications across several drive families and EX2000 excitation equipment; describing it only as a turbine-control board would be too narrow.
4. What is the purpose of the board’s DIP switches and jumpers?
They provide configuration selections for functions such as voltage and feedback scaling within the DCFB architecture.
