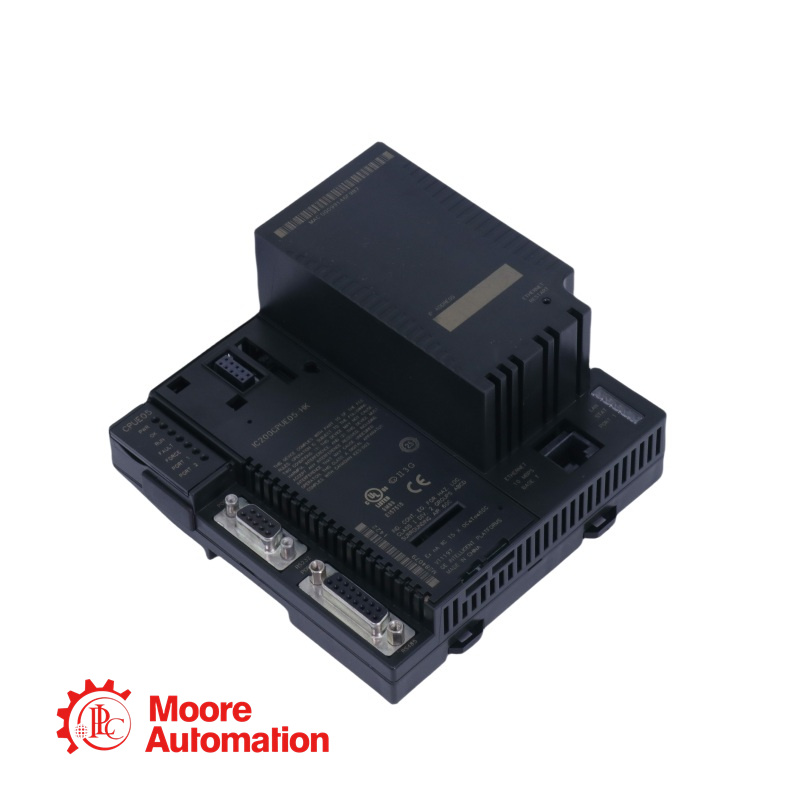

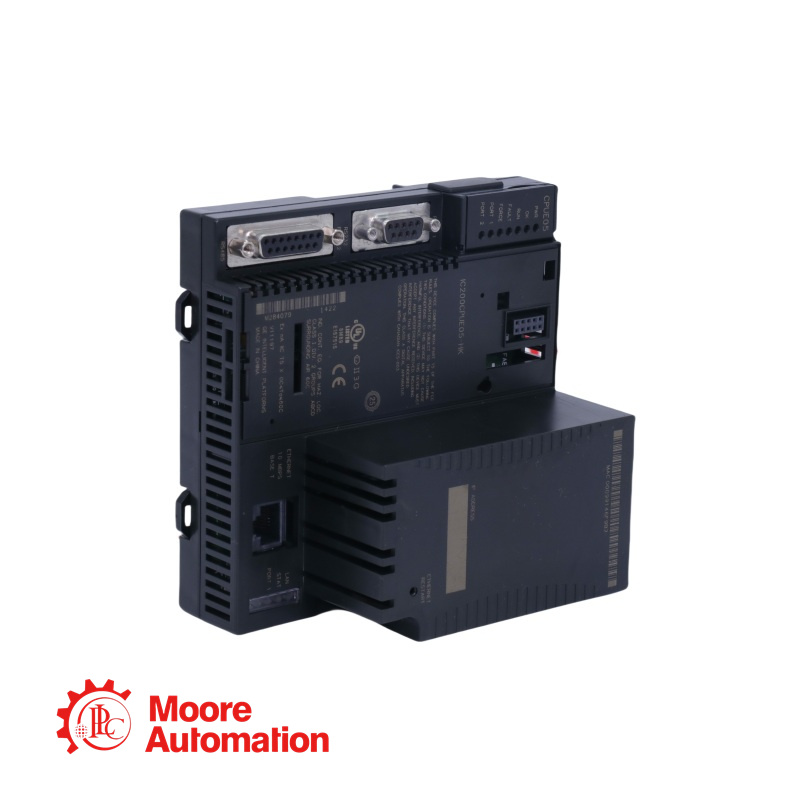

Emerson IC200CPUE05-MX Universal controller

The Emerson IC200CPUE05-MX is a compact, high-performance programmable logic controller (PLC) from the RX3i PACSystems series, designed for industrial automation and machine control applications. This versatile controller combines real-time control capabilities with flexible communication options, making it ideal for demanding automation environments.

Order number IC200CPUE05

Dimensions (width x height x depth, in millimeters) 126 x 128 x 69.1

Program storage system flash memory, battery powered memory

The power requirement is 220mA for 5V and 570mA for 3.3V

Floating point is

Boolean execution speed of 0.8 ms/K (typical value)

Real time clock accuracy (for timer function) 100ppm (0.01%) or+/-9 seconds/day

Time clock accuracy of 100ppm, within the full temperature range

Built in communication RS-232, RS-485， Ethernet

Maximum configurable memory of 64K bytes

Ethernet data rate of 10Mbps (half duplex or full duplex)

Ethernet port RJ-45, UTP

Number of SRTP server connections 8

Number of switches based on Ethernet Global Data (EGD) configuration 32

EGD exchange limits each exchange to 100 data, with 1400 bytes of data per exchange
