The ASCO Series E909BB Sequencer is an electronic controller specifically engineered for the management of solenoid valves in industrial dust collector systems.
Nhãn hiệu :
Emersonmột phần số :
ASCO E909PA16MU1Trọng lượng :
0.38 kgKích thước :
2x25.8x26.1cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :
Electronic Valve ControllerGet Price Immediately
◆Frida (★★★★★ Sales Manager)
◆Phone: +86 15359408275
Product Overview
→

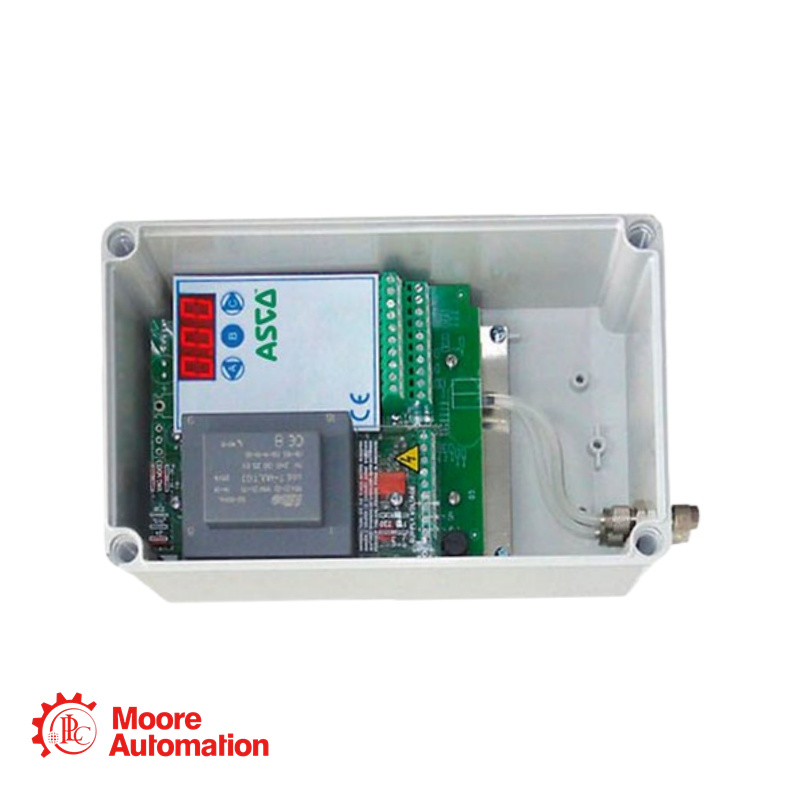

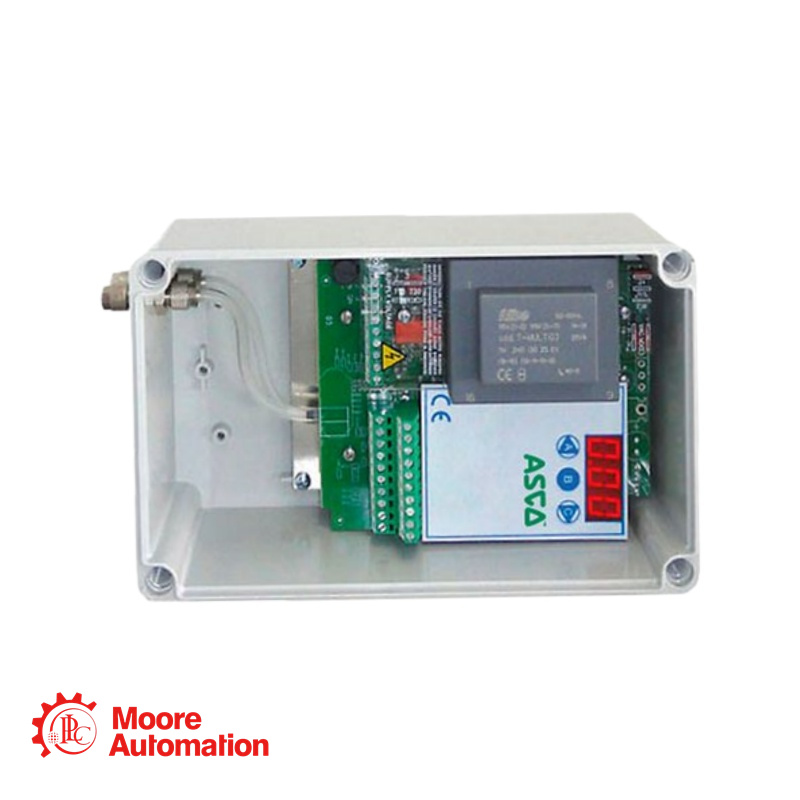

The ASCO Series E909PA16MU1 Sequencer is an electronic controller specifically engineered for the automated management of solenoid valves in industrial dust collector systems. It utilizes an integrated differential pressure (ΔP) sensor to monitor the pressure drop across the filter media. This microprocessor-based system initiates ON/OFF filter cleaning cycles precisely when the preset ΔP threshold is reached, optimizing filter performance and energy efficiency.
→
Application: Sequencers for Dust Collector Systems
Control Method: Delta P (ΔP) control via an internal pressure sensor
Maximum Standard Controllable Valves: 48 solenoid valves (expandable to 192 on request)
Programming Interface: 3 programming keys and a 3-digit LED display
Key Adjustable Parameters: Pulse time adjustable from 0.05 to 5.0 seconds; Interval time adjustable from 1 to 999 seconds
Supply Voltage (Standard): AC 230V or 115V, selectable via jumper
Output Voltage (Standard): DC 24V (other voltages available on request)
Maximum Load per Output: 25 Watts
Operating Ambient Temperature Range: -10°C to 50°C
Enclosure Protection Rating: IP65
Housing Material: ABS (Acrylonitrile Butadiene Styrene), grey
Cover Material: PC (Polycarbonate), transparent
Output Protection: Individual short-circuit protection for each output
Additional Outputs: 1 output relay (e.g., for group alarm)
Digital Inputs: 2 volt-free digital inputs
Tube Connection for ΔP Sensor: Ø 6/4 mm
Maximum ΔP for Sensor: 10 kPa
