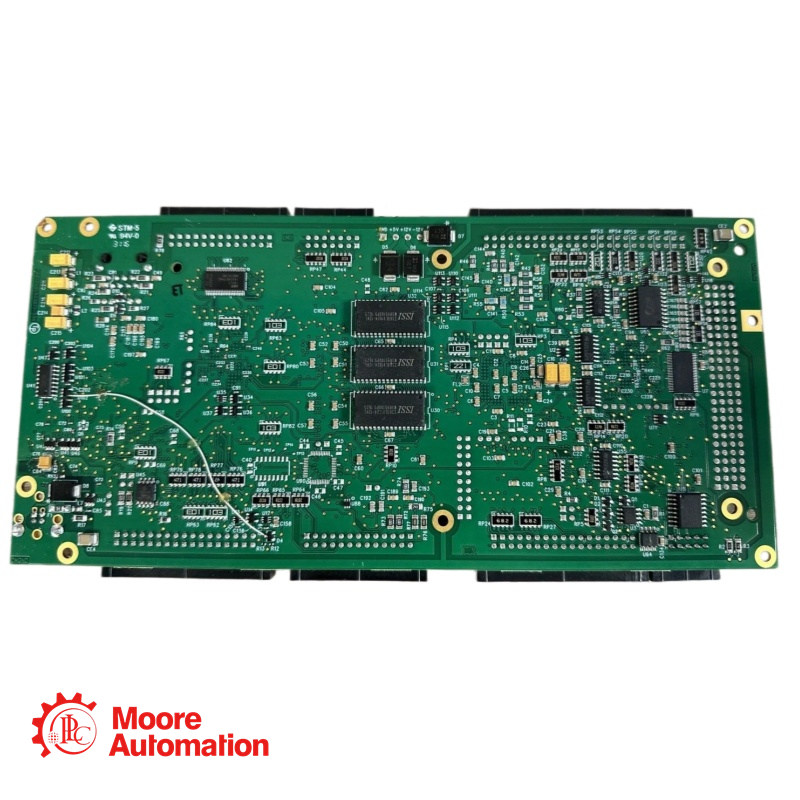

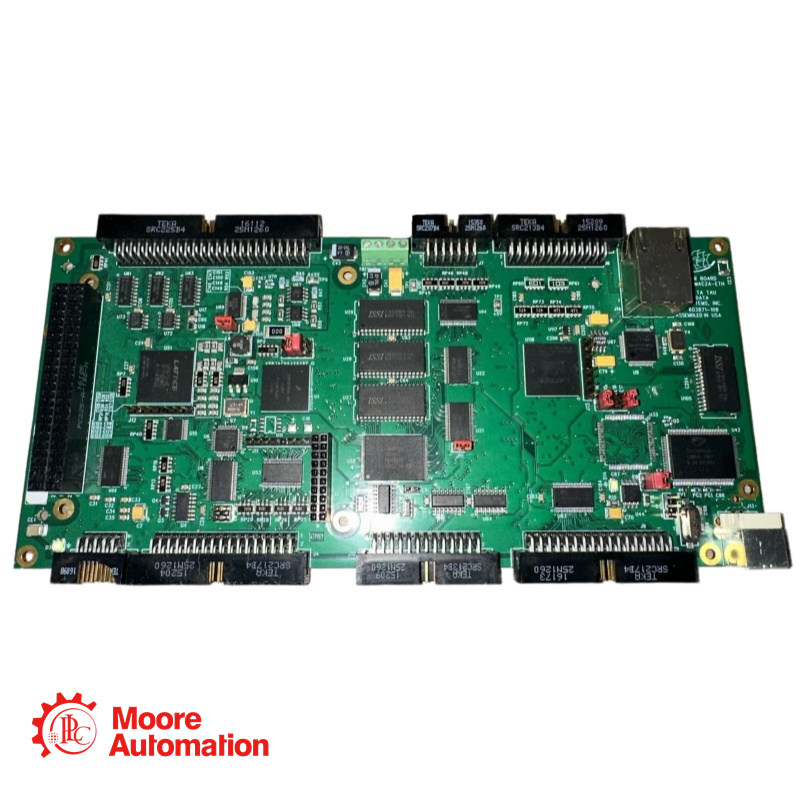

DELTA PMAC2A-ETH 603871-108 CONTROLLER BOARD

CONTACT US TO GET PMAC2A-ETH 603871-108'S PRICE

PMAC2A-ETH 603871-108 DESCRIPTION

PMAC2A-ETH 603871-108 FEATURES

❯ (4) Axes of Simultaneous Servo / Stepper Control, Expandable with Piggyback Accessories to (8) Axes and Beyond
❯ All Axes Independent or Coordinated in Any Combination
❯ Multitasking of Up to 16 Motion Programs and 64 Asynchronous PLC Programs
Communications: Ethernet, USB, & RS-232
❯ Easy-to-Use, High-Level Programming Language 128Kx24 SRAM User Data Memory (Programs, Variables, Tables)

PMAC2A-ETH 603871-108 SPECIFICATIONS

Processor: 80 MHz CPU
SRAM: 256k x 24
Flash: 1M x 8
OPT-12: A/D x 2 (12 Bit), D/A (12 Bit)

PMAC2A-ETH 603871-108 FREQUENTLY ASKED QUESTIONS

It is a high-performance multi-axis motion controller in a compact board format. It combines the power of the Turbo PMAC2 engine with integrated I/O, designed for applications requiring high-speed synchronization, such as CNC machines, robotics, and medical equipment.

※What does "Turbo" signify in the PMAC2A-ETH 603871-108 architecture?

The "Turbo" designation indicates a faster 80 MHz DSP processor and enhanced firmware. This allows for:
More complex mathematical calculations (like inverse kinematics).
Higher servo update rates.

※How does multitasking work on this PMAC2A-ETH 603871-108 board?

The Turbo Clipper can run multiple processes at the same time:
Up to 16 Motion Programs: These handle trajectory calculations (linear/circular interpolation).
Up to 64 Programs: These run asynchronously in the background to handle I/O, safety interlocks, and system housekeeping.
