DIGITAX ST SERVO DRIVE

DST1403

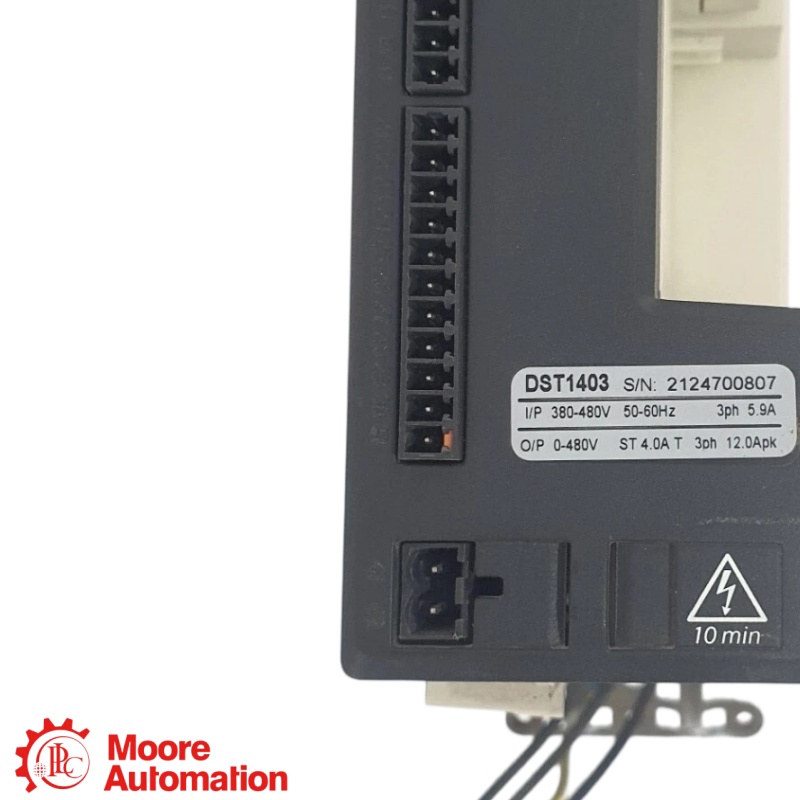

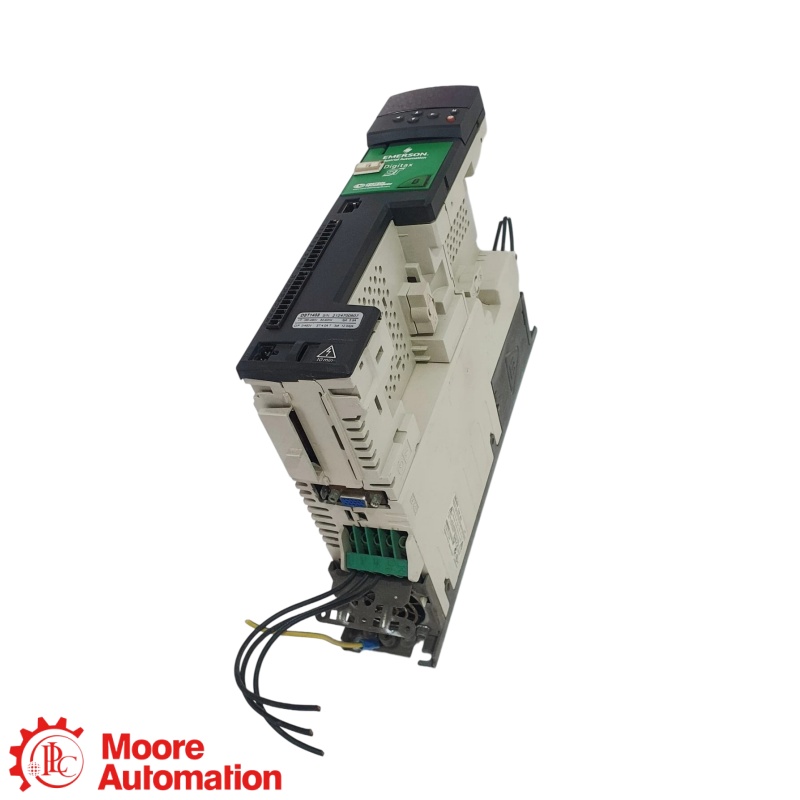

The complete DST1403 is a Control Techniques Digitax ST servo drive for a 380–480 VAC three-phase supply. Its nominal output is 4.0 A, with a 12.0 A peak rating subject to the documented duty profile.

SUPPLY380–480 VAC
PHASESThree-phase
NOMINAL OUTPUT4.0 A
PEAK OUTPUT12.0 A
MANUFACTURERControl Techniques
PRODUCT TYPEDigitax ST Servo Drive
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATIONPhotos and video after inquiry
REQUEST A QUOTE
hỏi ngay
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
Control Techniques ● DIGITAX ST · THREE-PHASE SERVO DRIVE
CONTROL TECHNIQUES DIGITAX ST

DST1403

4.0 A NOMINAL OUTPUT

380–480 VAC · Three-phase · 12.0 A peak

PRODUCT ROLE
DST1403 is a Digitax ST servo drive. Select motor, feedback and optional modules against the installed drive variant and application.
INSTALLATION CHECK
Match the complete drive label and option modules before replacement. Follow the manufacturer installation and commissioning procedure.
MODEL CODE

DST1403 model code at a glance

DST1403 is decoded using the manufacturer model-number key. The requested reference does not include a Base, Indexer, Plus or EZMotion variant letter.

DST
Product familyDigitax ST
1
Frame sizeFrame 1
4
Voltage class380–480 VAC
03
Current rating stepStep 03
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Control Techniques DST1403
Digitax ST Servo Drive

Engineering data at a glance

Expand the groups for electrical ratings and installation data.

SUPPLY (AC)380–480 V
NOMINAL4.0 A
PEAK12.0 A
PHASES3-phase
Current-rating conditionsPeak capability depends on the load profile. Use the drive-sizing guidance for the actual switching frequency and operating conditions.
GENERAL INFORMATION −
BrandControl Techniques
Part numberDST1403
Product typeDigitax ST Servo Drive
Product lineDigitax ST
Supply380–480 VAC ±10%, three-phase
Nominal output current4.0 A
Peak output current12.0 A, duty-dependent
Typical input current5.9 A
Maximum continuous input current6.0 A
Weight2.1 kg
ProtectionIP20
OPERATING CONDITIONS＋
Ambient temperature0 to +50 °C; output derating above +40 °C
Supply frequency48–65 Hz
Operating humidityUp to 95%, non-condensing
INSTALLATION & CONFIGURATION＋
Control terminals provide analog references, digital control signals and a drive-enable / Safe Torque Off input. Encoder feedback and RS485 serial communications use dedicated connectors.
Source:Control Techniques Digitax ST Technical Data Guide, Issue 3, part 0475-0002-03; model key, DST1403 ratings and general data.
FAQ

DST1403 Specifications, Applications and Ordering FAQ

What is the supply rating of DST1403?＋

DST1403 uses a three-phase 380–480 VAC supply, with ±10% voltage tolerance.

What is the nominal output current of DST1403?＋

DST1403 is rated at 4.0 A nominal output.

Is the 12.0 A rating of DST1403 continuous?＋

No. DST1403 has a 12.0 A peak rating; the permitted duty profile must be checked.

Does DST1403 specify an application variant?＋

DST1403 omits the final variant letter. Check the complete drive label before selecting Base, Indexer, Plus or EZMotion functions.

What enclosure protection does DST1403 provide?＋

DST1403 is IP20 and is intended for installation inside a suitable enclosure.

Can option modules be assumed from the DST1403 rating code?＋

No. For DST1403, record the installed options separately and match them to the replacement requirement.

What should accompany an order for DST1403?＋

For DST1403, provide the full label, installed option references, motor and feedback details, and the required quantity.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Official Technical Data Guide for
DST1403

Manufacturer technical data for the Control Techniques DST1403 Digitax ST servo drive.

Digitax ST Technical Data Guide

Official guide, Issue 3, part 0475-0002-03. Includes the DST1403 model ratings, installation dimensions and electrical data.

DOWNLOAD OFFICIAL PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Manufacturer publication: Control Techniques Digitax ST Technical Data Guide, Issue 3.

CONTROL TECHNIQUES DIGITAX ST SYSTEM RELATIONSHIP

How DST1403 Fits a Servo Axis

Control Techniques supplies the Digitax ST family; DST1403 is the drive rating reference. Match the application variant, motor and feedback arrangement to the installed axis.

Control Techniques· BRAND
DST1403SERVO DRIVE
AXIS CONTROL

Motor drive

Use the drive within the motor and load requirements of the machine axis.

CONFIGURATION

Drive setup

Keep an application record of the motor, feedback, options and parameter set.

DOCUMENTATION

Manufacturer technical guide

Use the official technical guide for ratings and the applicable installation documentation for commissioning.

System relationship:The drive sits between the electrical supply and the motor within the configured motion-control axis.
APPLICATION AREAS

Application areas for DST1403

Servo Axis ReplacementMatch the drive rating and installed configuration in an existing servo axis.
Motor Drive IntegrationSelect the drive together with the motor and feedback system.
APPLICATION CENTER DST1403 Digitax ST servo drive for an application-specific motor axis.
Machine CommissioningRetain the correct parameters and installed options during commissioning.
Drive MaintenanceIdentify the complete drive variant and documented setup before replacement.
