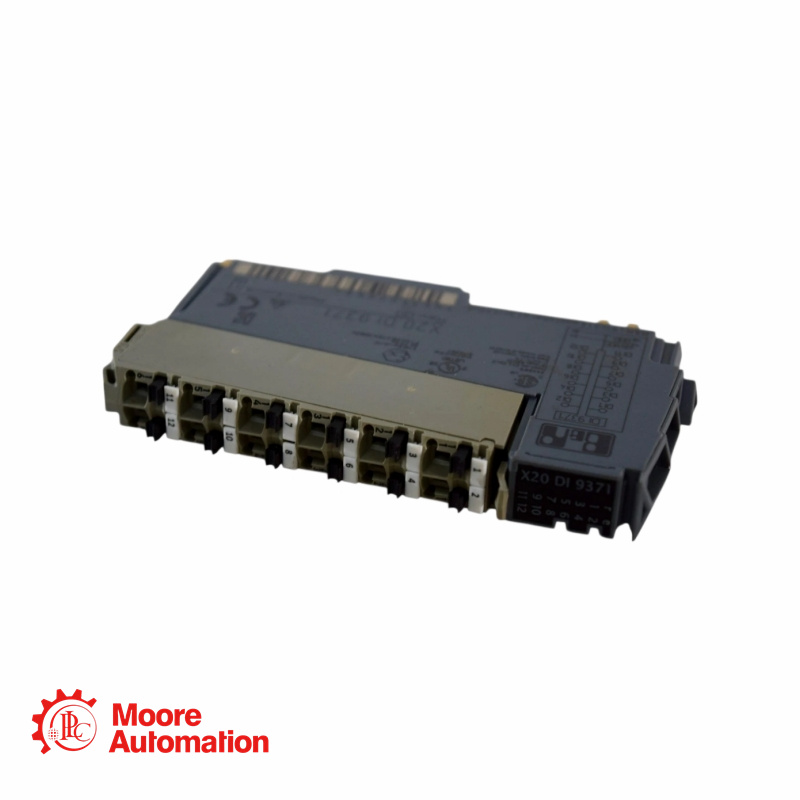

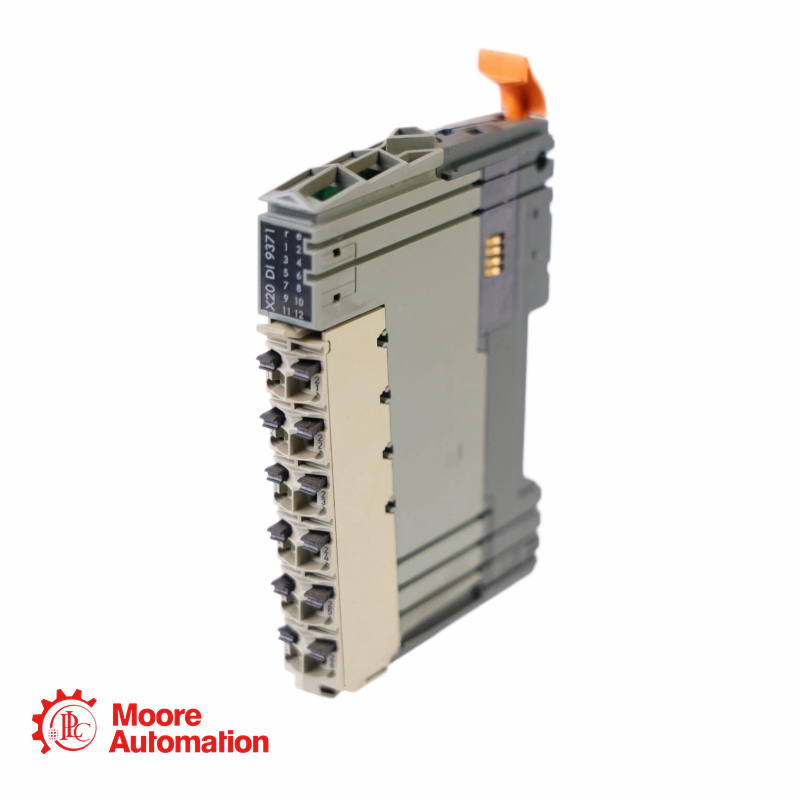

B&R X20DI9371 12-Channel 24VDC Digital Input Module

Claim Your Extra Discount: Contact Sales Nina Lan for Details

Email：sales8@askplc.com

Mobile(WhatsApp)：+86 18030235312

Technical Specification For X20DI9371

Brand

B&R

Input Circuit

Sink input

Product Series

X20

Input Characteristics

EN 61131-2 Type 1

Product Model

X20DI9371

Input Current / Resistance

Typical 3.75 mA at 24VDC; typical 6.4 kΩ

Input Points

12 digital inputs

Switching Thresholds

Low: <5VDC; High: >15VDC

Nominal / Input Voltage

24VDC; 24VDC -15% / +20%

Isolation / Operating Temperature

500 Veff channel-to-bus; -25 to 60°C horizontal mounting

FAQ

Q1: What type of field devices should be used with X20DI9371?
A: It is designed for sink input wiring, so compatible sourcing or PNP field devices should provide the 24VDC input signal.

Q2: How does the configurable input filter improve system reliability?
A: It suppresses short noise pulses and contact bounce. The software delay can be adjusted from 0 to 25 ms for the application.

Q3: Can this module be used for functional safety signals?
A: No. X20DI9371 is a standard digital input module. Safety-related circuits should use dedicated safety-rated I/O modules.

Q4: What should be checked before replacing the module?
A: Confirm the X20DI9371 part number, sink wiring method, 24VDC supply, terminal block, bus module, and input-filter settings.
