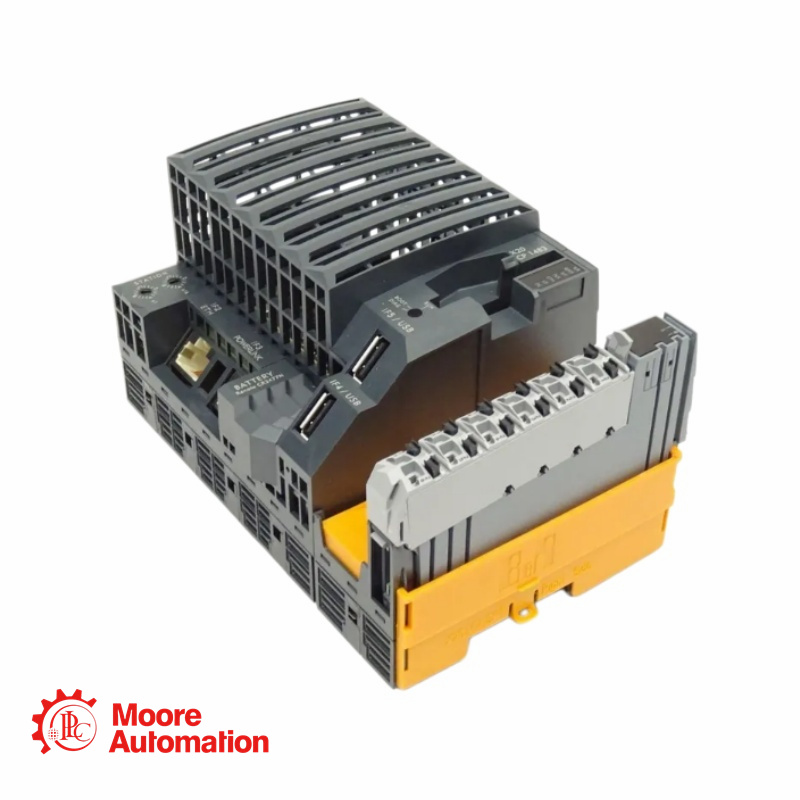

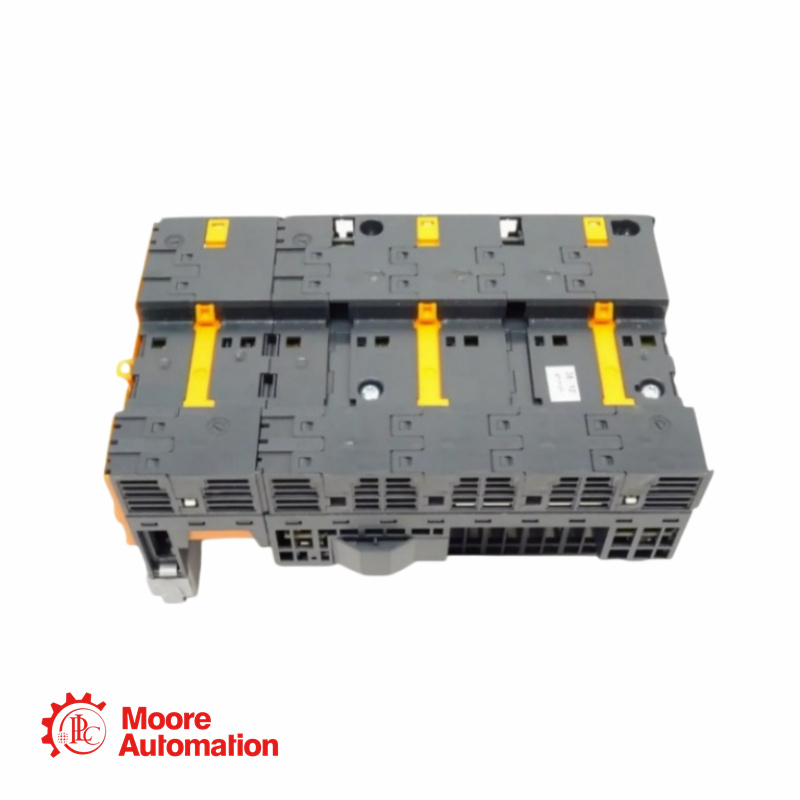

X20CP1483-1 is an entry-level Intel x86-based controller with Ethernet, USB, POWERLINK, and a slot for additional interfaces.
Nhãn hiệu :
B&Rmột phần số :
X20CP1483-1Trọng lượng :
0.3 kgKích thước :
15.0cm x 9.9cm x 8.5cmnước xuất xứ :
GERMANYMã HS :
8537101190Sự mô tả :
X20 PLC controller with 100 MHz x86 CPU, 64 MB SDRAM, Ethernet, POWERLINK, RS232, USB, and X2X Link.|
Claim Your Extra Discount: Contact Sales Nina Lan for Details |
|
Mobile(WhatsApp)：+86 18030235312 |
Description of X20CP1483-1
The X20CP1483-1 is an entry-level controller from B&R's X20 series, built around a 100 MHz Intel x86-compatible processor. It offers an excellent price-to-performance ratio while sharing the same core features as larger controllers in the family. Onboard Ethernet and USB ports come as standard, and the integrated POWERLINK interface enables hard real-time communication for demanding automation tasks. A free expansion slot allows for an additional interface module, enhancing flexibility for various system configurations. The main distinction between the X20CP1483 and the X20CP1483-1 lies solely in the SDRAM size.
Technical Specification For X20CP1483-1
Brand
B&R
Memory
64 MB SDRAM; 128 kB SRAM
Product Series
X20
Ethernet Speed
10/100 Mbit/s
Product Model
X20CP1483-1
Power Input
24 VDC, -15% / +20%; max. 2.2 A
Processor
Intel-compatible x86, 100 MHz
Operating Temperature
Horizontal: -25 to 60°C; Vertical: -25 to 50°C
FAQ
Q1: What is the main difference between X20CP1483-1 and X20CP1483?
Q2: Is a CompactFlash card required for operation?
Q3: Can Ethernet and POWERLINK be used in the same control system?
Q4: When should X2X Link power derating be considered?
A: X20CP1483-1 has 64 MB SDRAM, while X20CP1483 has 32 MB SDRAM. Their core interfaces and CPU platform are similar.
A: Yes. The controller requires a CompactFlash card for Automation Runtime, system components, and the application project.
A: Yes. They use separate onboard interfaces; Ethernet is for standard networking, while POWERLINK supports real-time communication.
A: Above 55°C, the X2X Link power supply output must be reduced from 7 W nominal to 5 W.
|
