Nhãn hiệu :
Bently Nevadamột phần số :
21505-00-12-10-02Trọng lượng :
0.06kgKích thước :
55x1.5x1.5cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :
Standard Mount Probe
PRODUCT AT A GLANCE

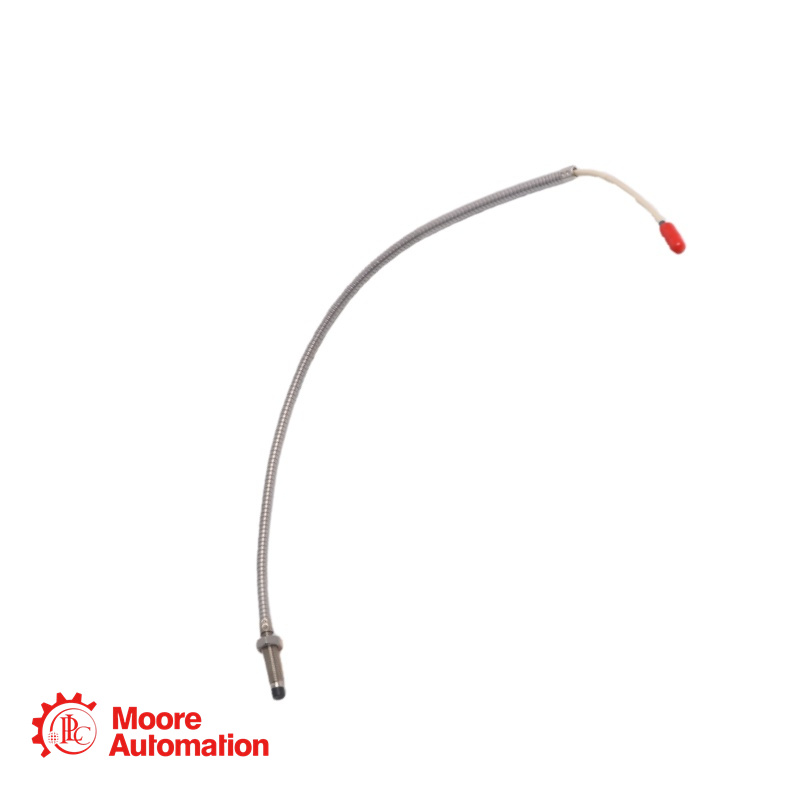

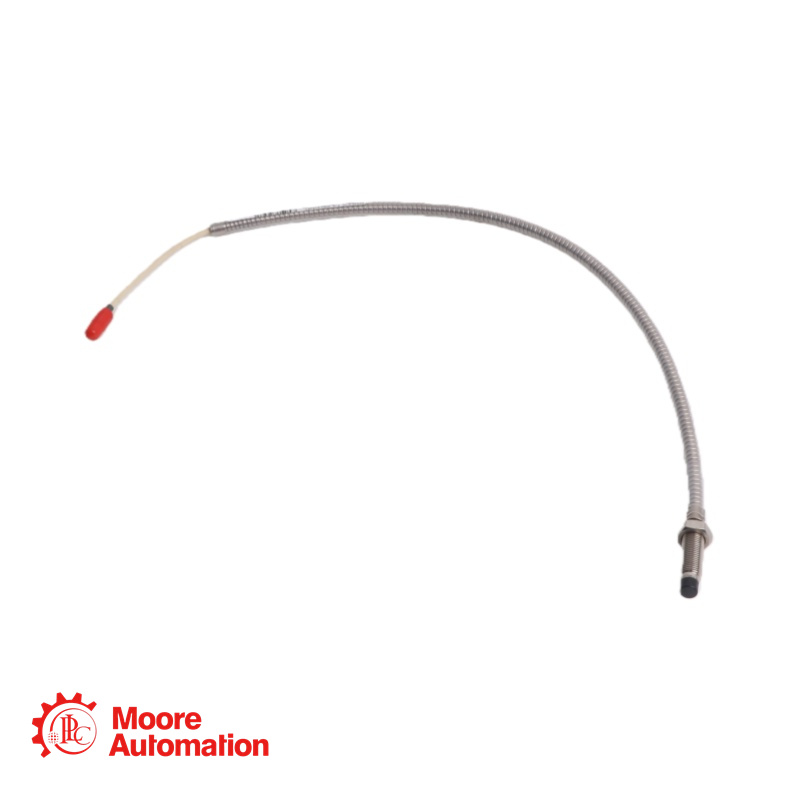

The Bently Nevada 21505-00-12-10-02 is a Standard Mount Proximity Probe from the 3300 XL series. This non-contact eddy-current displacement sensor is engineered for high-precision measurement of radial vibration and axial position in rotating machinery.
TECHNICAL SPECIFICATIONS
Sensor Type: Eddy-Current Displacement Proximity Probe
Thread / Mounting: 3/8-24 UNF-2A
Probe Tip Diameter: 11 mm
Cable Length: 10.0 meters
Linear Range: 100 mils (2.54 mm)
Scale Factor (Sensitivity): 200 mV/mil (7.87 V/mm)
Operating: -52°C to +177°C (-62°F to +351°F)
Frequency Response: 0 to 10 kHz.
HOW REQUEST A QUOTE FROM US?
Sales Manager: Frida
Phone/Whatsapp/Wechat:+86 15359408275
Email:sales5@mooreplc.com
FREQUENTLY ASKED QUESTIONS
Q:Is this 21505-00-12-10-02 have warranty?
A:Yes. We offer original new product with one year warranty.
Q:What is the 21505-00-12-10-02 probe's thread size?
A:The thread is 3/8-24 UNF-2A. This is a standard fine-thread size used for larger probe diameters to ensure secure mounting in heavy machinery.
Q:What is the 21505-00-12-10-02 probe tip diameter?
A:The probe tip diameter is 11 mm.
Quality & Condition Assurance
Our products are all brand-new with original factory seals.
We also offer a one-year warranty for you.
For the current stock, we can provide you with photos and videos.
For those items that need to be purchased, we can provide you with photos and videos before the shipment.
If any quality issues arise with the product within one year, you can contact our team.
Before You Buy
Our Payment Term is T/T.
Our Commercial Terms are EXW or DAP.
For shipping, we can use your account: DHL, UPS, TNT, CHIRLINE, FEDEX
Or we can calculate the shipping cost for you and have our freight forwarder handle the delivery.
Or you could provide us with your freight forwarder's contact information, and we will send it to the address of your freight forwarder.
