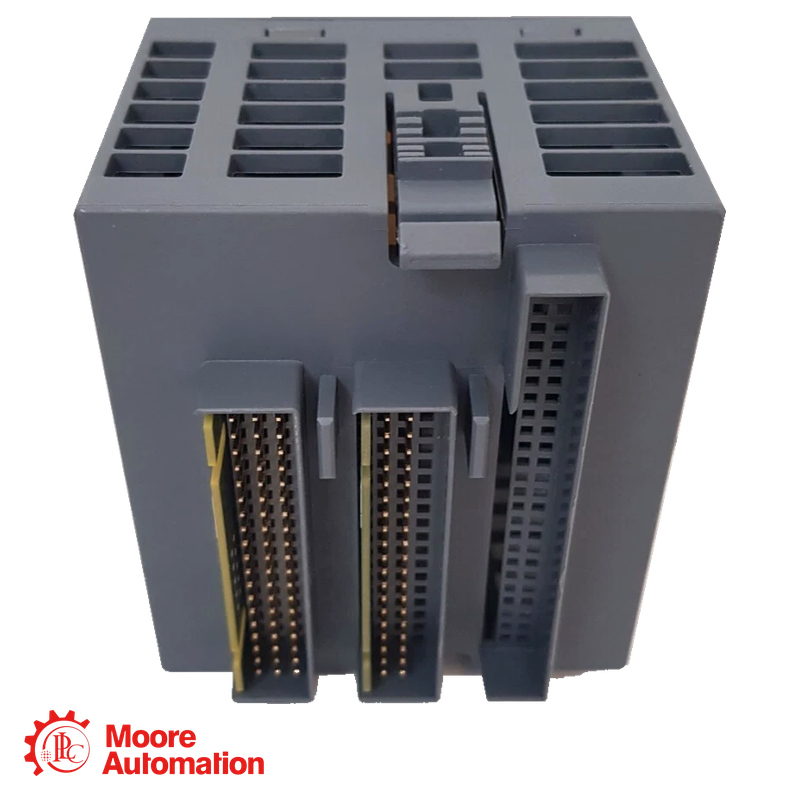

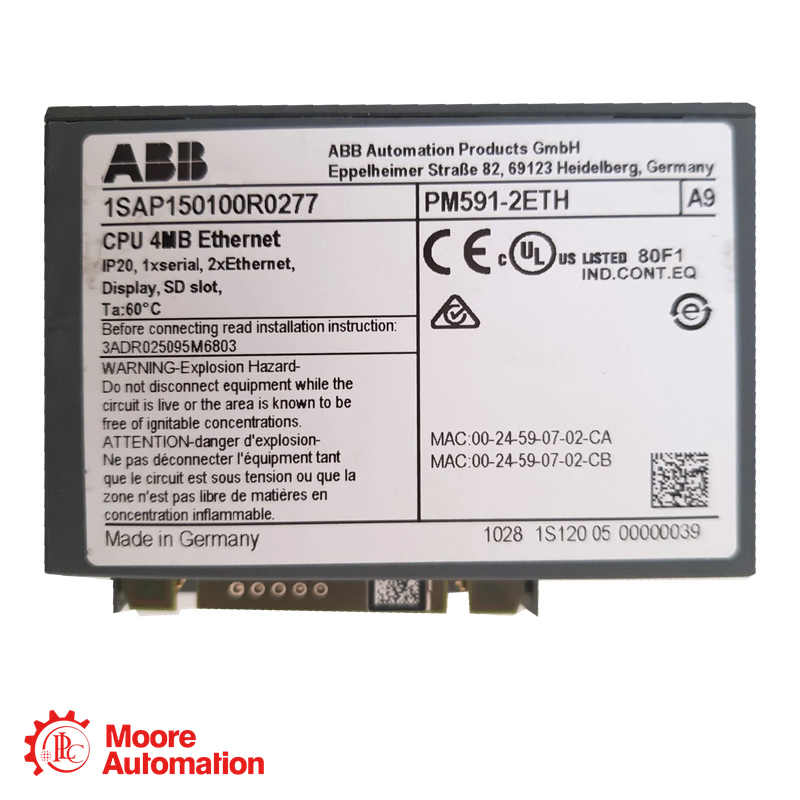

ABB PM591-2ETH 1SAP150100R0277 AC500 Processor Module
ABB PM591-2ETH 1SAP150100R0277 AC500 Processor Module
ABB PM591-2ETH 1SAP150100R0277 AC500 Processor Module

ABB PM591-2ETH 1SAP150100R0277 AC500 Processor Module

ABB · AC500 PROCESSOR MODULE

PM591-2ETH 1SAP150100R0277

The PM591-2ETH 1SAP150100R0277 is an ABB AC500 processor module with 4096 kB program memory, two Ethernet ports that can use different IP addresses and two configurable RS232/RS485 serial interfaces. Retain the complete model and order number for nameplate matching.

MANUFACTURERABB
PLATFORMABB AC500
PROGRAM MEMORY4096 kB
ORDER NUMBER1SAP150100R0277
MANUFACTURERABB
PRODUCT TYPEAC500 processor module
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATION● Official ABB AC500 selection guide referenced
REQUEST A QUOTE
hỏi ngay
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ABB ● AC500 PROCESSOR MODULE
ABB AC500 PROCESSOR MODULE

PM591-2ETH 1SAP150100R0277

OFFICIAL ABB PROCESSOR DATA

Exact model · ABB order number · processor memory · Ethernet and serial communication

PRODUCT ROLE
PM591-2ETH 1SAP150100R0277 is an ABB AC500 processor module with 4096 kB program memory, two Ethernet ports that can use different IP addresses and two configurable RS232/RS485 serial interfaces.
SYSTEM MATCH
Confirm PM591-2ETH, order number 1SAP150100R0277, the installed AC500 terminal base, 24 V DC supply, Ethernet network and serial-interface requirements before ordering.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the PM591-2ETH 1SAP150100R0277 identifier is structured

PM591-2ETH 1SAP150100R0277 is structured as PM591 + 2ETH: PM591 identifies the AC500 processor model, while 2ETH identifies the dual-Ethernet variant.

PM591
Processor modelABB AC500 processor-module model code
2ETH
Ethernet variantTwo-Ethernet-port model suffix
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

ABB AC500 processor module
PM591-2ETH 1SAP150100R0277

Engineering data at a glance

ABB’s AC500 selection guide identifies PM591-2ETH under order number 1SAP150100R0277 with the processor, memory and communication data shown here.

PROGRAM MEMORY4096 kB
INTEGRATED COMMUNICATIONDual Ethernet + 2 serial
ETHERNET SERVICESProgramming · Modbus TCP · OPC · web server
CYCLE TIME (BIT / WORD / FLOAT)0.002 / 0.002 / 0.004 µs
Official ABB processor identificationMatch PM591-2ETH, order number 1SAP150100R0277, the installed AC500 terminal base, 24 V DC supply and Ethernet/serial requirements before ordering.
GENERAL INFORMATION −
BrandABB
Complete model / order numberPM591-2ETH 1SAP150100R0277
Product typeAC500 processor module
Program memory4096 kB
Data memory5632 kB, including 1536 kB buffered
Integrated communicationTwo Ethernet ports plus 2 configurable RS232/RS485 serial interfaces
Minimum instruction time0.002 / 0.002 / 0.004 µs
Power supply24 V DC
Official sourceABB AC500 Selection Guide
PROCESSOR & COMMUNICATION DATA ＋
PlatformABB AC500
Integrated communicationTwo Ethernet ports plus 2 configurable RS232/RS485 serial interfaces
Ethernet servicesThe dual Ethernet interfaces support programming, Modbus TCP, OPC and web-server functions
CONTROL SYSTEM INTEGRATION ＋
Before ordering, provide PM591-2ETH, order number 1SAP150100R0277, nameplate photographs, quantity, installed AC500 terminal-base details, 24 V DC supply and Ethernet/serial communication requirements.
Source: ABB’s AC500 selection guide lists PM591-2ETH under order number 1SAP150100R0277 with 4096 kB memory, two Ethernet ports that can use different IP addresses and two configurable RS232/RS485 serial interfaces.
FAQ

PM591-2ETH Technical and Ordering FAQ

What is PM591-2ETH 1SAP150100R0277?＋

PM591-2ETH 1SAP150100R0277 is an ABB AC500 processor module with 4096 kB memory, two Ethernet ports that can use different IP addresses and two configurable RS232/RS485 serial interfaces.

Where is PM591-2ETH 1SAP150100R0277 documented by ABB?＋

PM591-2ETH 1SAP150100R0277 is documented by ABB under order number 1SAP150100R0277 in the ABB AC500 selection guide.

How much program memory is available in PM591-2ETH 1SAP150100R0277?＋

ABB documents PM591-2ETH 1SAP150100R0277 with 4096 kB program memory and 5632 kB integrated data memory, including 1536 kB buffered.

Which communication interfaces are integrated in PM591-2ETH 1SAP150100R0277?＋

ABB documents PM591-2ETH 1SAP150100R0277 with two Ethernet ports that can use different IP addresses, two configurable RS232/RS485 interfaces.

Which Ethernet services are supported by PM591-2ETH 1SAP150100R0277?＋

ABB documents two Ethernet ports that can use different IP addresses with programming, Modbus TCP, OPC and web-server functions support for PM591-2ETH 1SAP150100R0277.

What supply and installation details should be checked for PM591-2ETH 1SAP150100R0277?＋

Before ordering PM591-2ETH 1SAP150100R0277, confirm order number 1SAP150100R0277, the installed AC500 terminal base, 24 V DC supply and Ethernet/serial communication requirements.

What information should be supplied when sourcing PM591-2ETH 1SAP150100R0277?＋

When sourcing PM591-2ETH 1SAP150100R0277, provide the exact model and order number, quantity, nameplate photographs, installed AC500 terminal-base details and Ethernet/serial requirements.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete model, ABB order number, installed AC500 terminal base and communication requirements for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
PM591-2ETH 1SAP150100R0277

ABB’s AC500 selection guide provides exact processor and communication data for PM591-2ETH under order number 1SAP150100R0277.

Official ABB product documentation

ABB identifies PM591-2ETH as an AC500 processor module with 4096 kB memory, two Ethernet ports that can use different IP addresses and two configurable RS232/RS485 serial interfaces.

OPEN OFFICIAL ABB AC500 GUIDE ↗

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical values on this page are limited to PM591-2ETH data stated in ABB official documentation for order number 1SAP150100R0277.

ABB AC500 PROCESSOR IDENTIFICATION

What the PM591-2ETH 1SAP150100R0277 identifier means

PM591-2ETH 1SAP150100R0277 is structured as PM591 + 2ETH: PM591 identifies the AC500 processor model, while 2ETH identifies the dual-Ethernet variant.

PROCESSOR MODEL

PM591

PM591 identifies the ABB AC500 processor model.

DUAL-ETHERNET VARIANT

2ETH

2ETH identifies the dual-Ethernet variant.

Model relationship: PM591 = processor model; 2ETH = dual-Ethernet variant.
APPLICATION AREAS

Application areas for PM591-2ETH

Central PLC ProcessingExecutes AC500 control programs with 4096 kB program memory in machine and process automation systems.
Ethernet-Connected ControlConnects the controller to industrial Ethernet using two Ethernet ports that can use different IP addresses.
APPLICATION CENTER PM591-2ETH 1SAP150100R0277 4096 kB · 2 Ethernet · 2 serial
Machine and Process AutomationCoordinates automation sequences, communications and connected I/O in industrial equipment.
Networked AC500 SystemsSupports programming, Modbus TCP, OPC and web-server functions in AC500 network architectures.
