The ABB GJR2390200R1411 83SR04A-E is a versatile binary input/output module designed for the Procontrol P14 platform. Offering up to 16 digital inputs and 16 digital outputs in a single module, this unit provides dependable digital signal processing for a wide range of industrial applications.
Nhãn hiệu :
ABBmột phần số :
GJR2391500R1210 81EU01H-ETrọng lượng :
0.42kgKích thước :
2x19.7x26.1cmnước xuất xứ :
SwedenMã HS :
8537101190Sự mô tả :
Input Module
>>>Easily To Get Price:
Contact 5 STAR Manager: Frida
Email:sales5@mooreplc.com
Phone/Whatsapp/Wechat:+86 15359408275
>>>GJR2391500R1210 81EU01H-E
Core Technical Specifications
|
Parameter |
Specification |
|
Manufacturer |
ABB |
|
Model Number |
81EU01H-E |
|
Order Code / Part No. |
GJR2391500R1210 |
|
Product Type |
Power Supply Module |
|
System Compatibility |
Procontrol P14 Series |
|
Input Voltage |
85–264V AC / 90–300V DC (wide-range) |
|
Input Frequency |
47–63 Hz |
|
Output Voltage |
24V DC |
|
Output Current |
5A (nominal), 7.5A (peak) |
|
Output Power |
120W |
|
Efficiency |
> 88% |
|
Protection Features |
Overload, overvoltage, short-circuit, overtemperature |
|
Redundancy Support |
Yes (parallel operation for N+1 redundancy) |
|
Isolation |
3000V AC (input to output) |
|
Cooling |
Convection-cooled (no fan) |
>>>GJR2391500R1210 81EU01H-E
Detailed Description

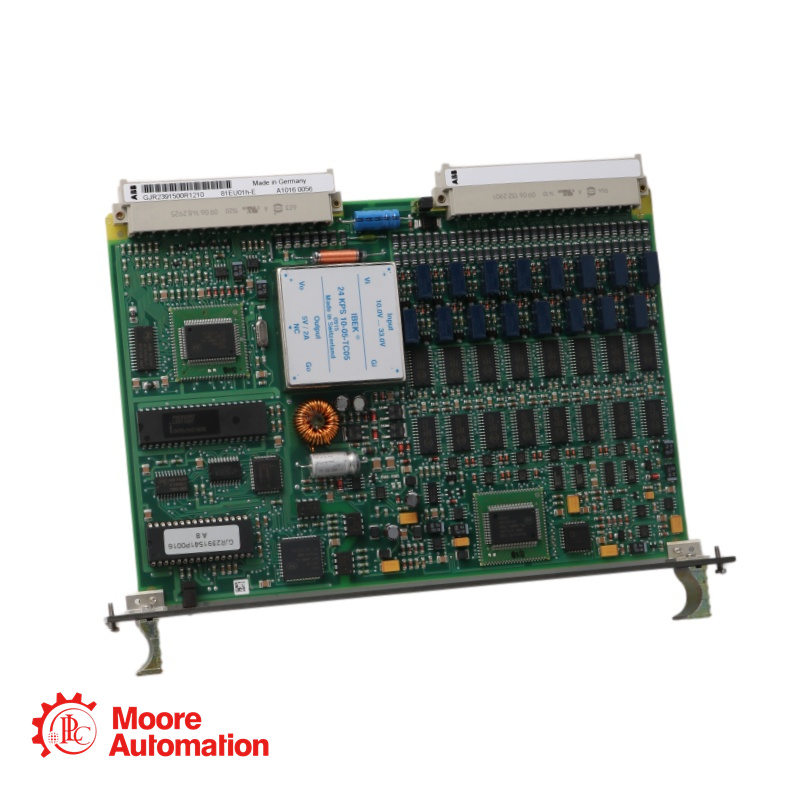

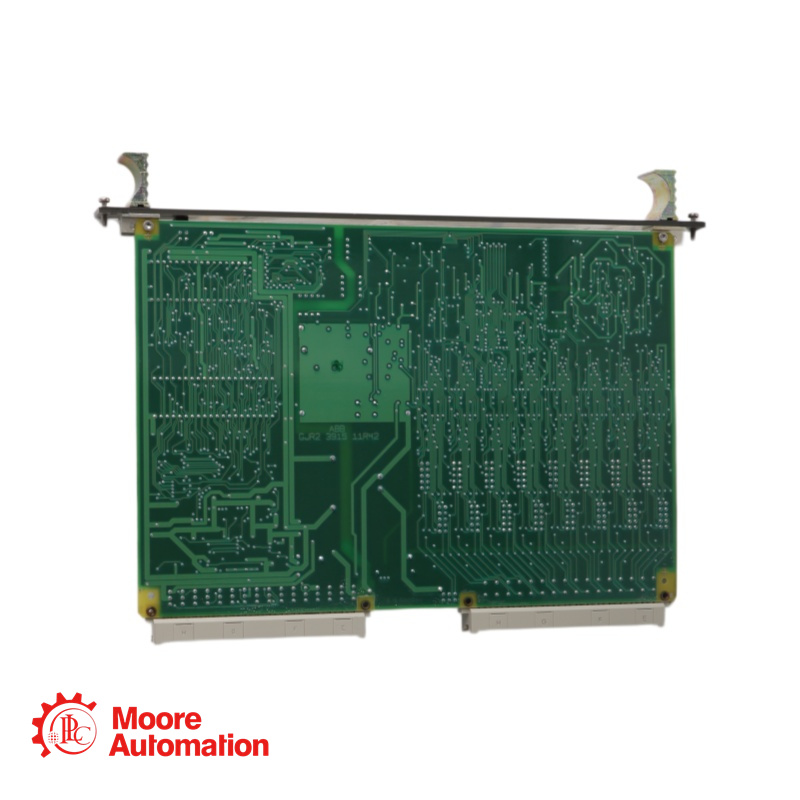

The ABB GJR2391500R1210 81EU01H-E is a high-performance power supply module designed specifically for the Procontrol P14 series of industrial control systems. Delivering 24V DC at up to 5A continuous (7.5A peak) , this module provides clean, regulated power to backplane components, I/O modules, and connected field devices.
>>>GJR2391500R1210 81EU01H-E
Operational benefits
▲Wide-Range Input Capability: Accepts both 85–264V AC and 90–300V DC inputs, making the module suitable for global installations with varying mains voltages, as well as DC backup systems and uninterruptible power supply (UPS) integration.
▲High Efficiency & Passive Cooling: With >88% efficiency and convection-cooled design, the module operates without a fan, eliminating a common failure point and reducing noise in control cabinets.
▲Built-In Redundancy: Supports parallel operation for N+1 redundancy configurations, ensuring system power remains available even in the event of a single power supply failure—critical for continuous process applications.
>>>GJR2391500R1210 81EU01H-E
FAQ Section
|
What is the output capacity of the ABB 81EU01H-E? |
|
The module provides 24V DC output with a continuous current rating of 5A (120W) and a peak current capacity of 7.5A for short-duration loads such as contactor pick-up or inrush currents. |
|
Can the 81EU01H-E be used in a redundant power configuration? |
|
Yes. The module supports parallel operation for N+1 redundancy. Multiple 81EU01H-E units can be connected in parallel to provide system power, with automatic load sharing. This configuration ensures uninterrupted operation if one power supply fails. |
|
What is the difference between the 81EU01H-E and the 81EU01E? |
|
The 81EU01H-E represents an enhanced revision with improved efficiency (>88% vs. earlier revisions), wider input voltage range, and updated component sourcing for extended lifecycle availability. Both modules are physically and functionally compatible within Procontrol P14 systems. |
|
Does this module require external cooling or fans? |
|
No. The 81EU01H-E is convection-cooled and designed to operate without a fan. It can be mounted vertically or horizontally within a standard control cabinet, provided adequate clearance for airflow is maintained. |
|
What protection features are included? |
|
Overload Protection: Automatic current limiting with recovery |
