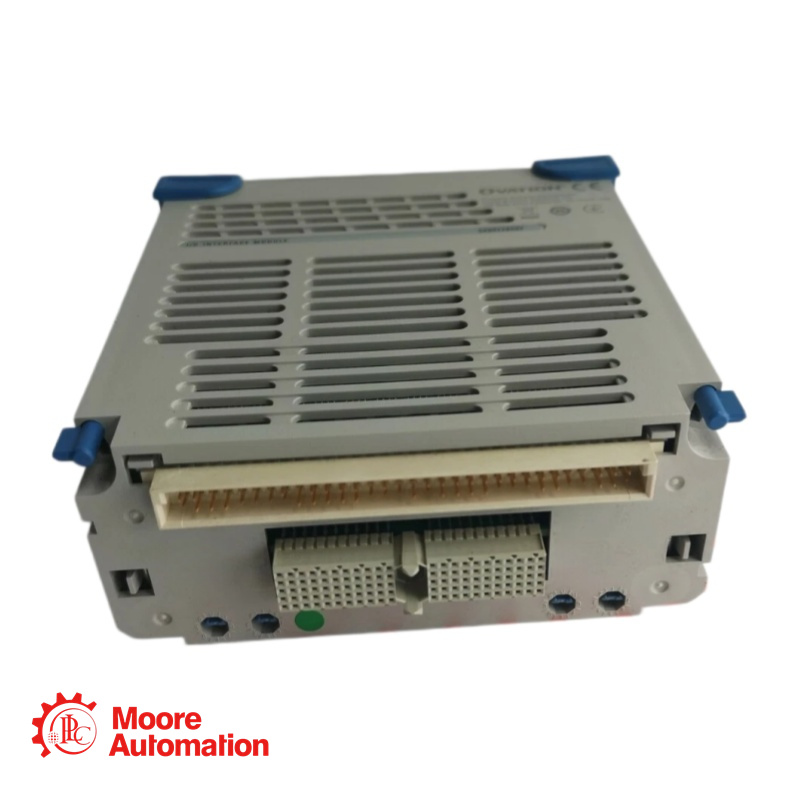

The 5X00226G04 is a module within the Ovation™ Controller Model OCR1100 series. It functions as one of the two modules that constitute the controller. This specific module provides the interface to both local and remote Ovation and Q Line I/O, plus internal powering.
Nhãn hiệu :
Ovationmột phần số :
5X00226G04Trọng lượng :
4.5 kgKích thước :
50.8*17.8*20.3 cmnước xuất xứ :
USAMã HS :
8537101190Sự mô tả :
Controller Model
5X00226G04
The 5X00226G04 is one of the two primary modules that form the Ovation OCR1100 controller. Its primary role is to serve as the I/O interface module. It manages all connections to both local and remote I/O sub-systems, including traditional Ovation I/O and Q Line I/O. This 5X00226G04 module works in conjunction with the processor module (5X00481G04) to provide a complete controller solution.
5X00226G04 supports up to 32,000 originated points and executes process control tasks with loop speeds ranging from 10 milliseconds to 30 seconds. The system is compliant with IEC 61131-3 standards and is built on an open architecture to facilitate technology upgrades while protecting software investments.
Specifications: 5X00226G04
Parameter
Specification
Processor Base Frequency
1.1 GHz
Memory
1 Gb Flash & 256 Mb RAM
Bus Structure
CompactPCI standard
NIC Ports
4 x 10/100 Mb Ethernet with two options:
(i) 4 x RJ45
(ii) 1 x RJ45 + 3 SFP Fiber
Power
24 VDC 40W
Temperature (Ambient)
For 4 x RJ45 option: 0-60°C (32-140°F)
For 1 x RJ45 + 3 SFP Fiber option: 0-50°C (32-122°F)
Humidity
0 - 95% RH
Size
20" w x 8" h x 7" d
5X00226G04 FAQ
Q: What is the function of the 5X00226G04 module?
A: The 5X00226G04 is the I/O interface module for the Ovation OCR1100 controller. It provides the physical and electrical interface to both local and remote Ovation I/O and Q Line I/O. It also handles internal powering for the controller pair.
Q: What other module must the 5X00226G04 be used with?
A: It must be used with the 5X00481G04 Processor Module. Together, these two modules form a complete Ovation OCR1100 controller. The processor module handles the control and network communication, while the 5X00226G04 manages the I/O connection
Q: What are the environmental requirements for this 5X00226G04 module?
A: The environmental specifications depend on the network interface configuration:
For units with 4 x RJ45 ports: Operating temperature range is 0 to 60 °C (32 to 140 °F) .
For units with 1 x RJ45 + 3 SFP Fiber ports: Operating temperature range is 0 to 50 °C (32 to 122 °F) .
Humidity: 0 to 95% RH (non-condensing).
Q: What is the power requirement for this 5X00226G04 module?
A: The module requires a 24 VDC power supply with a power consumption of 40W.
|
